5SHY3545L0016 | 5SHY3545L0009 | 5SHY3545L0010 | 5SHY3545L0014 ABB

Original price was: $12,000.00.Current price is: $10,576.00.

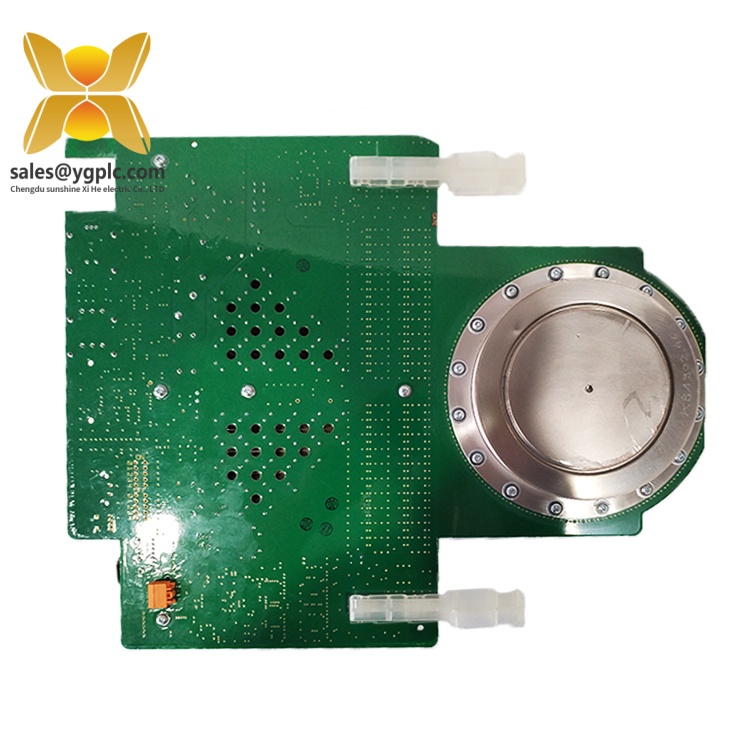

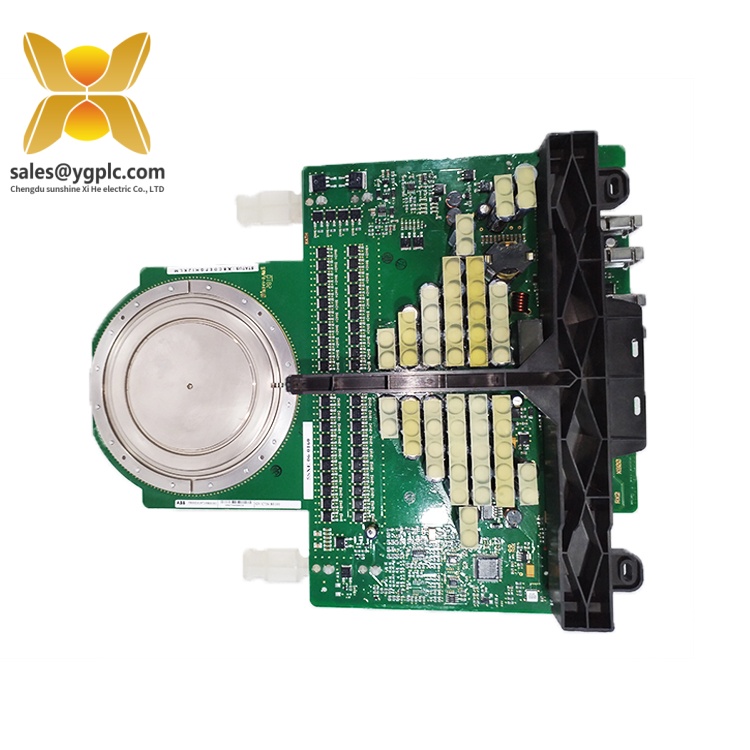

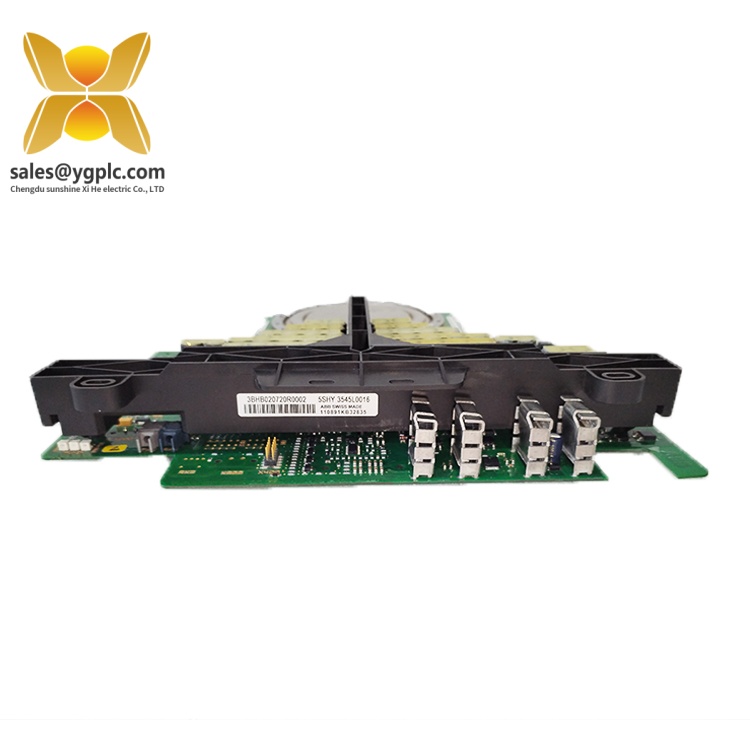

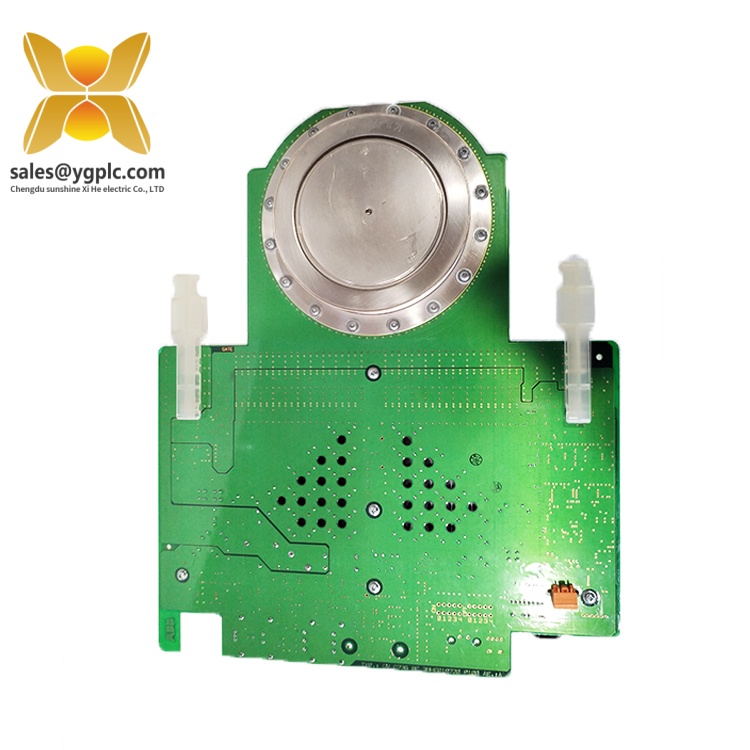

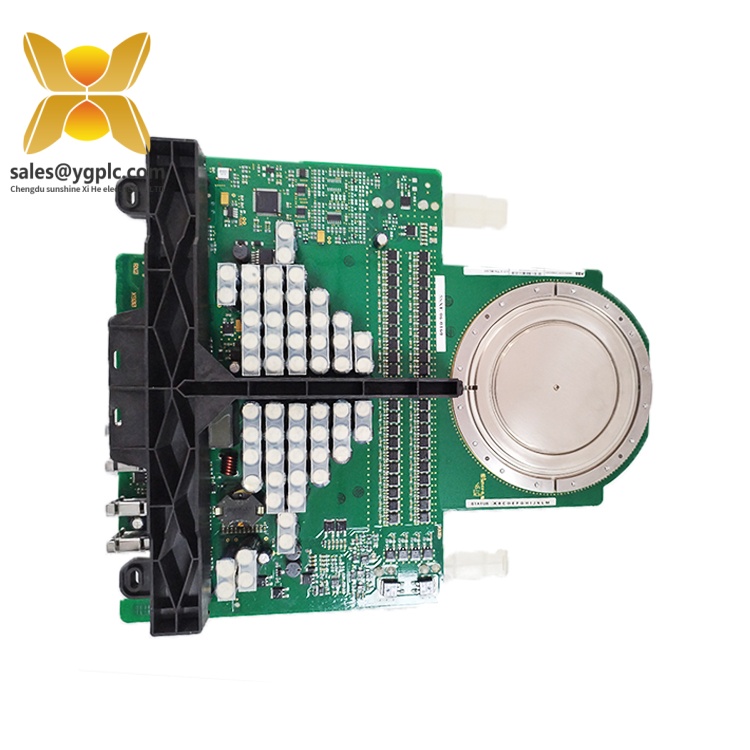

The ABB 5SHY3545L0016 is a high-power thyristor module designed to deliver reliable performance in demanding industrial applications requiring precise power control. As part of ABB’s 5SHY series, this module is engineered for high-current environments, enabling efficient energy conversion in systems such as industrial drives, power supplies, and renewable energy installations.
Product Model : ABB 5SHY3545L0016
Manufacturer : ABB
Product Type : High-Power Thyristor Module
Current Rating : 4,500 A
Blocking Voltage : 5,500 V
Gate Trigger Current : 150 mA
Turn-On Time : ≤ 5 μs
Turn-Off Time : ≤ 35 μs

Get a Quote
Category: Brand:

Description

ABB 5SHY3545L0016: High-Power Thyristor Module for Industrial Power Conversion

Product Overview

The ABB 5SHY3545L0016 is a high-power thyristor module designed to deliver reliable performance in demanding industrial applications requiring precise power control. As part of ABB’s 5SHY series, this module is engineered for high-current environments, enabling efficient energy conversion in systems such as industrial drives, power supplies, and renewable energy installations. The 5SHY3545L0016 bridges the gap between power generation and distribution, providing a robust solution for applications where stability and efficiency are critical.



With a current rating of 4,500 A and a blocking voltage of 5,500 V, the ABB 5SHY3545L0016 is optimized for high-power applications, including electric arc furnaces, HVDC transmission systems, and large-scale motor drives. Its compact design (170 × 150 × 60 mm) and lightweight construction (2.5 kg) ensure easy integration into existing power systems, while advanced thermal management features minimize heat dissipation and enhance longevity. The module supports both phase-controlled and DC applications, offering flexibility in diverse industrial settings.



In automation ecosystems, the 5SHY3545L0016 acts as a cornerstone for power conversion efficiency. By enabling precise control of high currents and voltages, it protects against overloads and voltage surges, extending the lifespan of connected equipment. Its compatibility with ABB’s broader portfolio of power modules and control systems allows for scalable and future-proof solutions.

5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

Technical Specifications

Parameter Specification
Product Model ABB 5SHY3545L0016
Manufacturer ABB
Product Type High-Power Thyristor Module
Current Rating 4,500 A
Blocking Voltage 5,500 V
Gate Trigger Current 150 mA
Turn-On Time ≤ 5 μs
Turn-Off Time ≤ 35 μs
Thermal Resistance 0.02 K/W
Dimensions (W×H×D) 170 mm × 150 mm × 60 mm
Weight 2.5 kg
Operating Temperature -40°C to +125°C
Storage Temperature -55°C to +150°C
Certifications CE, UL, RoHS
Warranty 1 year

Key Features and Advantages

High Power Handling: The 5SHY3545L0016 supports up to 4,500 A of current and 5,500 V of blocking voltage, making it suitable for heavy-duty industrial applications. Its robust design ensures stable operation under extreme conditions.



Fast Switching Speed: With a turn-on time of ≤ 5 μs and turn-off time of ≤ 35 μs, the module minimizes power losses and enhances system efficiency. This feature is critical for applications requiring rapid response times.



Thermal Management: Advanced heat sink technology and low thermal resistance (0.02 K/W) enable efficient cooling, reducing the risk of overheating and extending operational life.



Dual-Channel Redundancy: The module supports redundant configurations, ensuring continuous operation even in the event of a single component failure. This enhances system reliability in mission-critical environments.



Wide Temperature Range: Operating from -40°C to +125°C, the 5SHY3545L0016 adapts to harsh industrial conditions, including extreme temperatures and humidity.

5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

Application Areas

The ABB 5SHY3545L0016 excels in industries requiring high-power conversion and control:



  • Metallurgy: Powers electric arc furnaces, ladle furnaces, and induction heating systems, ensuring precise temperature control and energy efficiency.
  • Renewable Energy: Integrates with wind turbines and solar inverters to manage grid-connected power conversion, supporting stable energy output.
  • HVDC Transmission: Enables efficient long-distance power transmission in high-voltage direct current systems, minimizing energy losses.
  • Industrial Drives: Controls large motors in mining, oil and gas, and water treatment plants, optimizing performance and reducing downtime.
  • Power Electronics: Used in frequency converters, rectifiers, and inverters for industrial machinery and equipment.



By addressing power instability challenges, the 5SHY3545L0016 enhances productivity, reduces energy costs, and ensures compliance with environmental standards.

Related Products

  1. ABB 5SHY5045L0020: Higher-voltage variant (6,500 V) for extreme power applications.
  2. ABB 5SHY3545L0003: Lower-current variant (3,500 A) for less demanding systems.
  3. ABB 5SHY35L4520: Alternative configuration with different thermal characteristics.
  4. ABB 5SHY5055L0002: Higher-power thyristor module for heavy-industrial use.
  5. ABB 5SHY35L4510: Compact design for space-constrained environments.
  6. ABB 5SHY35L4512: Enhanced thermal management for high-temperature applications.
  7. ABB 5SHY3545L0009: Improved gate trigger sensitivity for precise control.
    5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

    5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

Installation and Maintenance

Installation Preparation:
Mount the 5SHY3545L0016 in a well-ventilated enclosure, ensuring proper thermal dissipation. Use torque-controlled screws to secure the module to the heat sink (recommended torque: 10 N·m). Verify electrical connections and grounding before powering up the system.



Maintenance Recommendations:
  • Regularly inspect for loose connections or signs of corrosion.
  • Clean dust and debris from the heat sink using compressed air or a soft brush.
  • Monitor operating temperatures and replace thermal interface material every 2–3 years.
  • Perform periodic electrical tests to validate switching performance and voltage ratings.
    5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

    5SHY3545L0016 3BHB019719R0101 GVC736BE101 5SXE06-0160

Product Guarantee

Chengdu Sunshine XiHe Electric Co., LTD, a trusted industrial automation distributor since 2007, offers a 1-year warranty on the ABB 5SHY3545L0016. This warranty covers defects in materials and workmanship, with repairs handled by certified technicians. As a leading supplier of rare，we ensure rapid delivery and 24/7 technical support to minimize downtime. Our extensive inventory and global sourcing network enable us to meet urgent requirements efficiently, supporting industries worldwide with reliable automation solutions.
