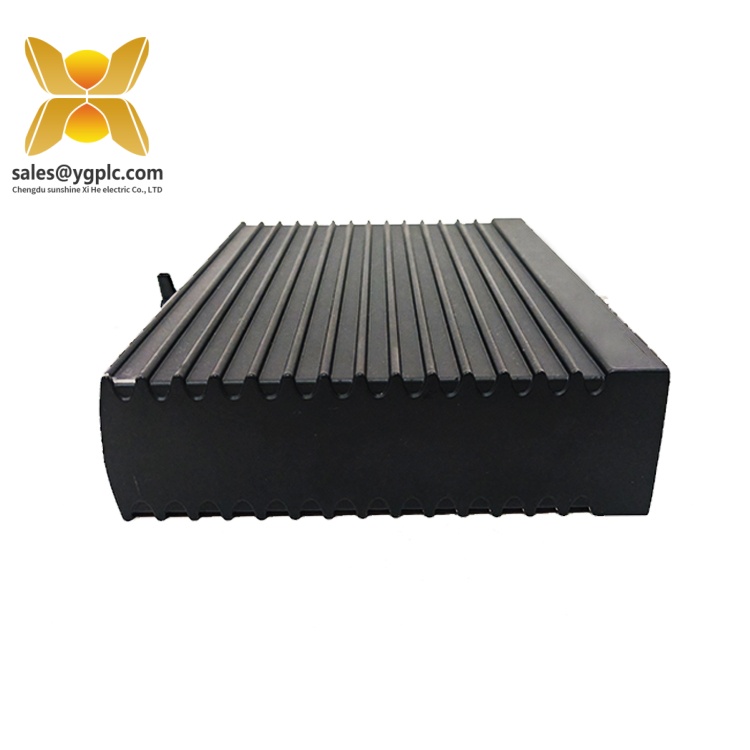

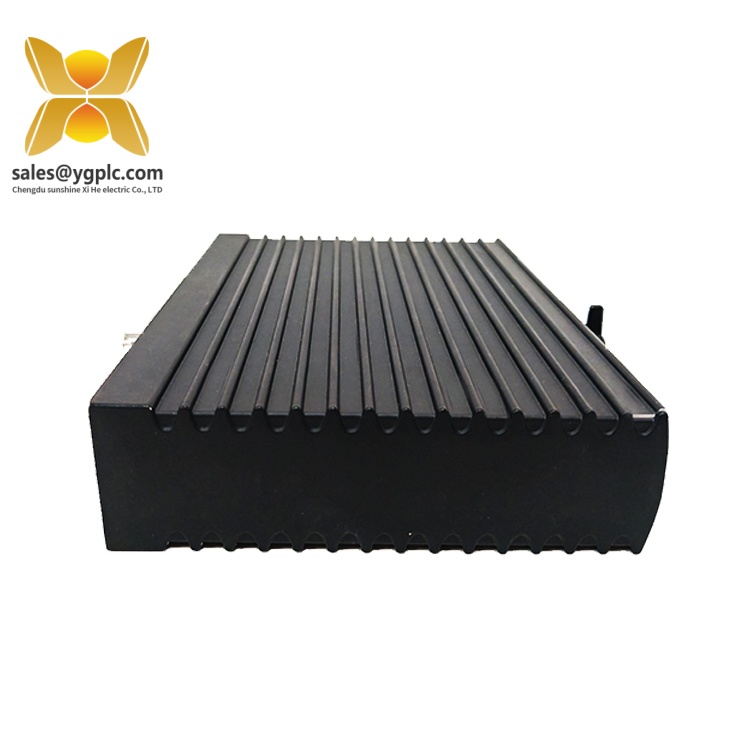

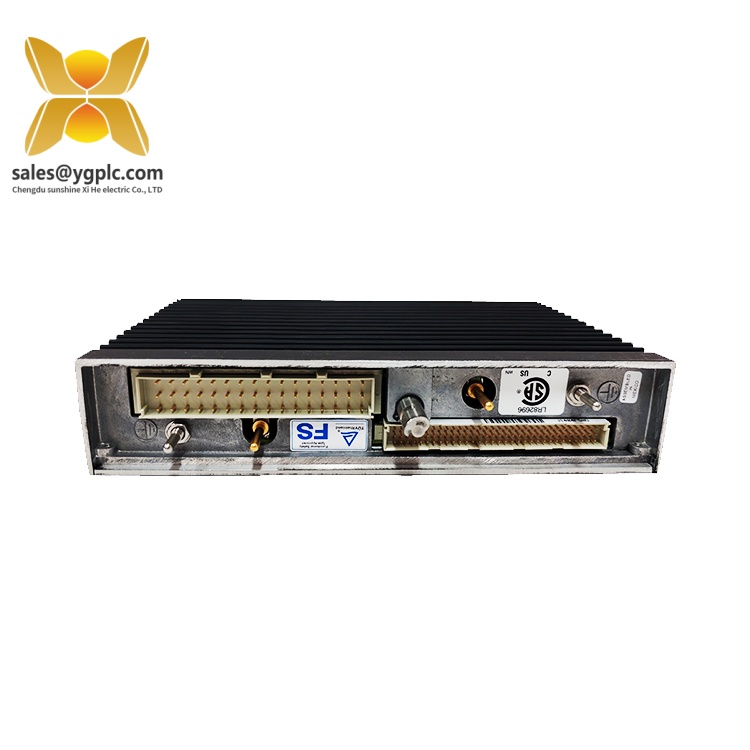

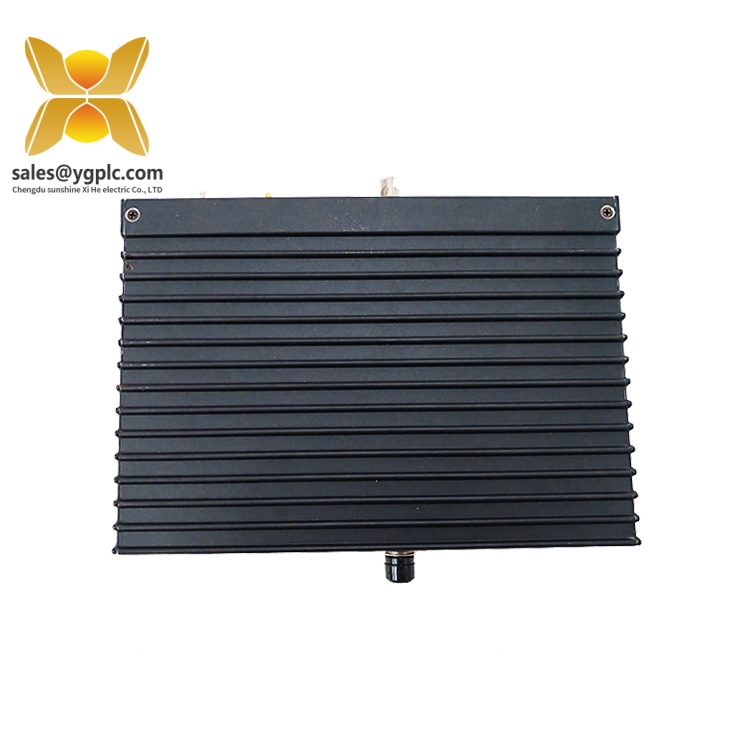

AI3351 | AI2351 7400210-100 | AI2351 7400210-101 | AI2351 7400210-010

Description

Product Overview

Technical Specifications

Parameter Name	Parameter Value
Product Model	AI3351
Manufacturer	TRICONEX
Product Type	Analog Input Module
Input Signal	4 – 20mA (rated input current), 32 – point common; 8 – point pulse input (non – common)
Input Frequency Range	20Hz – 20000Hz
Accuracy	±0.01% at 1000 – 20000Hz; ±0.1% at 100 – 999Hz; ±1.0% at 20 – 99Hz
Input Diagnosis Fault Range	0.5% input change of full scale
Sampling Period	The longer of one scan or 210 milliseconds
Status Indicator	1 per point, module status includes PASS, FAULT, ACTIVE
Power Supply	24VDC
Weight	1.5 kg (product itself), 3 kg (including shipping packaging)
Dimensions	267(W) * 107(H) * 302(D)mm

AI3351

Main Features and Advantages

• High Fault – Tolerance: The TRICONEX AI3351 adopts a triple – module redundancy structure (TMR), which consists of three identical sub – circuits. Each circuit independently executes a certain degree of control, enabling the module to withstand harsh industrial environments and ensuring high – reliability operation even in the event of a partial circuit failure1.
• On – Site Installability: It allows for online installation and maintenance at the module level without affecting the on – site wiring, which significantly reduces the downtime for system maintenance and improves the maintainability of the equipment1.
• Module Expandability: It supports up to 118 I/O modules (both analog and digital) and optional communication modules, providing strong scalability for the system and meeting the needs of different – scale industrial control applications1.
• Remote Communication Capability: The communication module can be connected to Modbus hosts and slaves, or to distributed control systems (DCS) such as Foxboro and Honeywell, other Tricons in the peer – to – peer network, and external hosts in the TCP/IP network. It can also support remote I/O modules up to 12 kilometers away from the host, facilitating the realization of remote monitoring and control of industrial automation systems1.
• Intelligent Functions: The intelligent functions in the input and output modules relieve the workload of the main processor. Each input/output module is equipped with three microprocessors, which can perform tasks such as signal filtering, fault diagnosis, and data processing, improving the overall performance and efficiency of the system1.


  AI3351

Application Areas

Related Products

• AI2354A: It is a related analog input module that may have different input signal types or channel numbers compared to the AI3351, and is often used in conjunction with the AI3351 to meet different system requirements.
• MTL4850: It is a communication interface module that can be used in combination with the AI3351 to realize communication functions such as Modbus RTU, facilitating the connection and data exchange between the module and other devices.
• 3501E/T: It is a digital input module of the TRICONEX brand. Although it has a different input signal type from the AI3351, it is also an important part of the TRICONEX control system and is often used in conjunction with the AI3351 to complete the monitoring and control of complex industrial processes.
• 3601E/T: It is a digital output module of the TRICONEX brand, which is used to output digital control signals and is often used in conjunction with the AI3351 to form a complete industrial control system.
• 3805E: It is an analog output module of the TRICONEX brand, which is used to output analog control signals and can be used in conjunction with the AI3351 to realize the closed – loop control of industrial processes.


  AI3351

Installation and Maintenance

• Installation – Preparation: Before installing the TRICONEX AI3351 module, ensure that the installation site meets the environmental requirements, with a suitable temperature range of – 40 °C to + 70 °C and good ventilation3. Check the integrity of the module and its accessories to ensure no damage during transportation. Prepare the necessary tools and equipment, and follow the installation instructions to connect the module to the control system correctly.
• Maintenance – Advice: Regularly clean the surface of the AI3351 module to prevent dust and dirt from affecting its heat dissipation and performance. Check the connection status of the module’s cables and connectors to ensure they are firmly connected without looseness or oxidation. Monitor the operating status of the module, and if any abnormal indicators or fault alarms occur, promptly check and troubleshoot according to the manual. Regularly back up the configuration data of the module to prevent data loss in the event of a fault.
