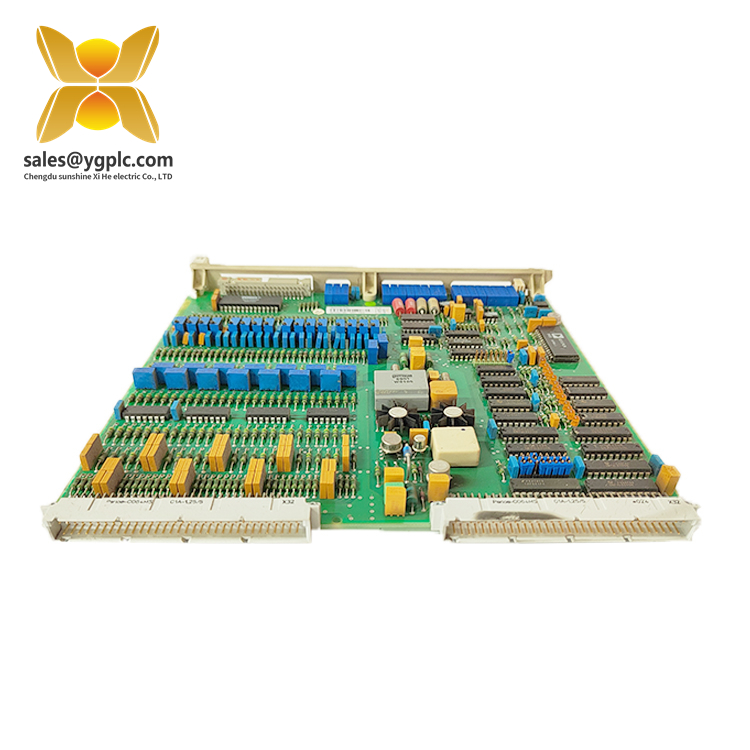

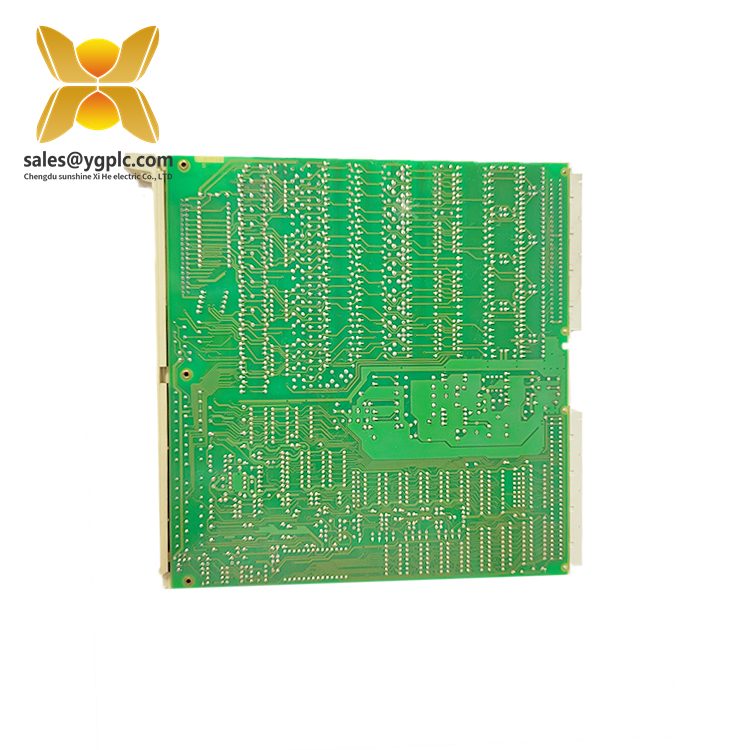

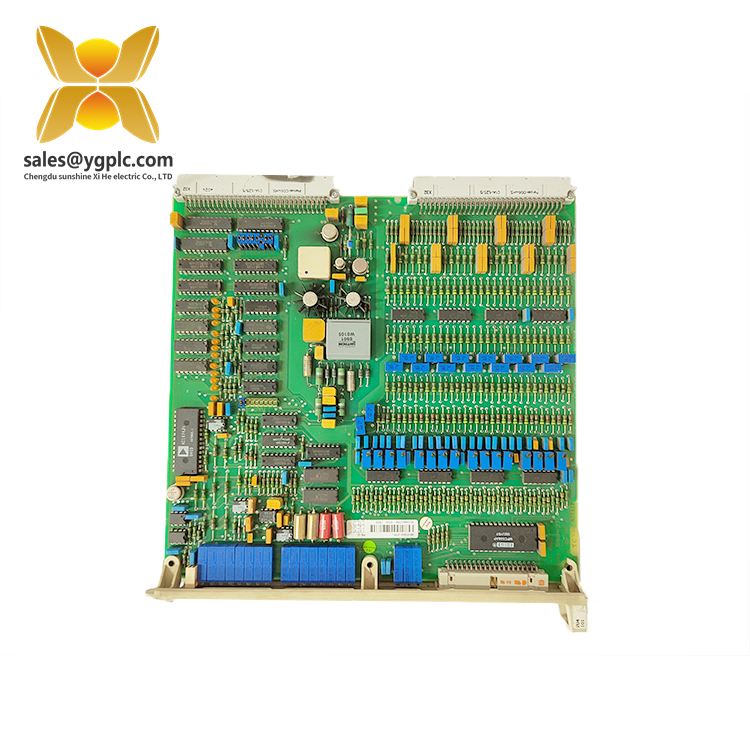

DSAI130D | DSAI133A-DSAI130DK01-3BS | Analog Input Module

Description

Brand：ABB

Model：DSAI130D

Product Parameters

• Condition: New, unused, factory – sealed.
• Warranty: Standard 1 – 2 years (region – dependent; verify with ABB documentation).
• Package: Compact cardboard box with foam padding, including mounting brackets and user manual.
• Mounting Type: DIN rail (35 mm) or panel – mountable via screw holes.
• Dimensions: Length: 100 mm, Width: 50 mm, Height: 120 mm (subject to slight variations by version).
• Surge Protection: Built – in transient voltage suppression up to 2.5 kV (IEC 61000 – 4 – 5).
• Compliance:
  • Electrical: IEC 61131 – 2, IEC 61000 – 6 – 2 (EMC immunity).
  • Safety: CE, UL 508 (industrial control equipment).
• Application: Industrial automation, process control, power management, and machinery monitoring.

Product Introduction



1. Multichannel Flexibility: With 8 isolated analog input channels, the DSAI130D supports simultaneous measurement of multiple signals (e.g., temperature, pressure, flow). It accepts 0 – 20 mA, 4 – 20 mA, ±10 V, and 0 – 10 V inputs, adapting to various sensor types.
2. 16 – Bit Resolution: Offers exceptional accuracy (±0.1% FS) for detailed signal analysis, critical for applications requiring tight process control.
3. Fast Sampling Rate: Adjustable up to 100 Hz, enabling real – time monitoring of dynamic processes.
4. Electrical Isolation: 500 V isolation between channels and system ground safeguards against noise and voltage spikes.
5. Wide Operating Range: Functions reliably in temperatures from -25°C to +60°C, making it suitable for harsh industrial settings.

• Modular Design: Easy to install on DIN rails or panels, reducing setup time in control cabinets.
• Diagnostic Capabilities: LED indicators for power, channel status, and fault detection simplify maintenance.
• Compliance & Safety: Meets global standards for EMC, safety, and performance, ensuring compatibility with international automation networks.
•

• Works with ABB’s AC500 PLCs and other third – party systems via standard protocols (Modbus RTU, Profibus DP).
• Configurable using ABB’s Automation Builder software for channel scaling, filtering, and alarm thresholds.

Product Application Industry

1. Manufacturing & Machinery
   • Monitor hydraulic/pneumatic pressures in CNC machines and robotic arms.
   • Track temperature in injection molding processes for quality control.
2. Energy & Power
   • Measure voltage/current in renewable energy inverters and generators.
   • Monitor boiler steam pressure in power plants.
3. Water/Wastewater Treatment
   • Analyze pH levels, dissolved oxygen, and flow rates in treatment facilities.
   • Control pump pressure in water distribution networks.
4. Oil & Gas
   • Monitor pipeline pressure and flow in refineries and offshore platforms.
   • Track pressure in drilling equipment for safety and efficiency.
5. Food & Beverage
   • Ensure precise temperature and flow control in pasteurization and bottling lines.
   • Monitor fermentation tank pressure in breweries.

•

• Cost – Efficiency: Reduces downtime with quick installation and modular expansion.
• Reliability: Withstands voltage surges and extreme temperatures, minimizing failures.
• Scalability: Supports up to 8 channels per module, ideal for small – to – medium – scale automation projects.
