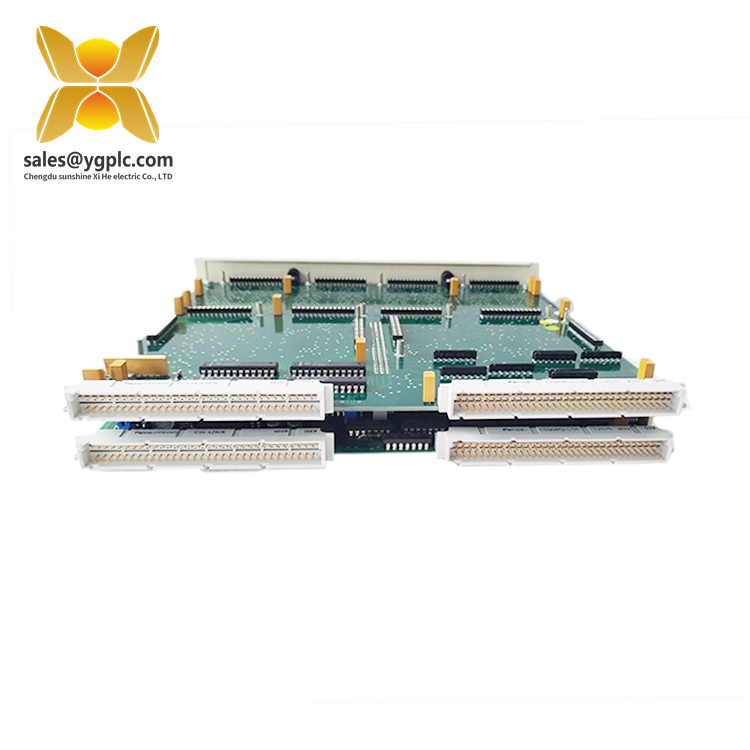

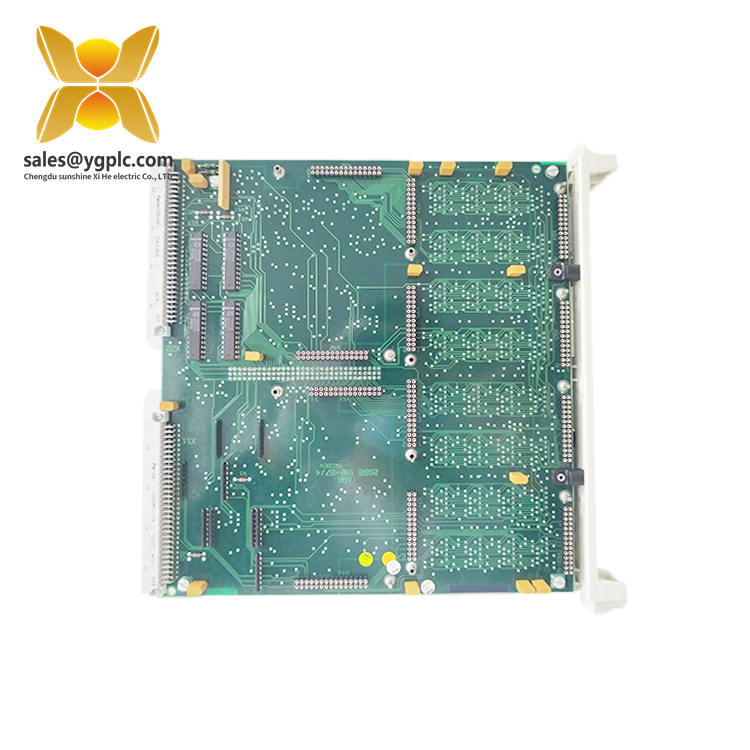

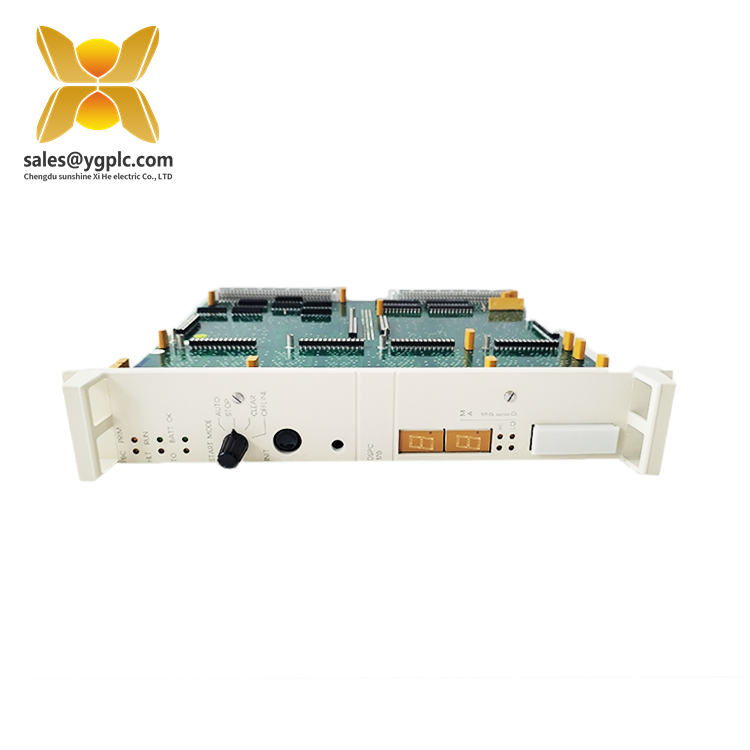

DSPC170 | DSPC172 | DSPC174

Description

Brand：ABB

Model：DSPC170

Product Parameters

• Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards for reliable operation in industrial environments.
• Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
• Package: Secure anti-static packaging with mounting brackets, user manual, and calibration certificate.
• Mounting Type: DIN rail or panel-mountable for flexible integration in control cabinets.
• Dimensions: Compact design (238.5 mm × 310.5 mm × 38.7 mm) weighing 0.915 kg for space-efficient installation.
• Surge Protection: Built-in transient voltage suppression safeguards against electrical surges and grid instability.
• Compliance: CE certified; RoHS compliant for environmental sustainability.
• Application: Industrial automation, power generation, chemical processing, water treatment, renewable energy, and transportation infrastructure.

Product Introduction

1. Dual-Core Processor Architecture: Combines Motorola DSP and PowerPC technology to handle complex control tasks, ensuring high-speed data processing and multi-tasking efficiency.
2. Modular Design: Supports expansion via track-mounted communication and I/O modules, adapting to evolving system requirements.
3. Real-Time Monitoring: Continuously monitors variables such as speed, torque, and voltage, with pre-programmed protection functions to maintain safe operation.
4. Multiprotocol Support: Enables seamless integration with various industrial communication standards, including Modbus RTU and IEC 61850.
5. Rugged Construction: Withstands extreme temperatures (-25°C to +60°C) and harsh conditions, ensuring reliability in challenging industrial settings.

• Energy Efficiency: Low power consumption reduces operational costs.
• Remote Configuration: Configurable via ABB’s automation software for parameter adjustments and diagnostics.
• Redundancy Support: Optional dual-channel configurations enhance system reliability for mission-critical applications.

Product Application Industry

1. Industrial Automation
   • Manufacturing: Manages motor control, robotic systems, and assembly lines in automotive, electronics, and food processing plants.
   • Process Control: Ensures precise regulation of valves, pumps, and reactors in chemical and petrochemical facilities.
2. Power Generation & Distribution
   • Substations: Monitors and protects transformers, circuit breakers, and feeders to maintain grid stability.
   • Renewable Energy: Optimizes energy flow in solar and wind farms, enabling seamless integration with smart grids.
3. Water/Wastewater Treatment
   • Pump Stations: Controls pump operations and monitors water quality parameters for efficient resource management.
   • Treatment Plants: Ensures compliance with environmental standards through real-time data acquisition.
4. Transportation Infrastructure
   • Railways: Manages traction power systems and signaling for safe and efficient rail operations.
   • Aviation: Supports power distribution in airports, ensuring reliable ground equipment performance.
5. Commercial & Residential
   • Smart Buildings: Optimizes HVAC and lighting systems for energy efficiency.
   • Critical Infrastructure: Safeguards hospitals, data centers, and emergency services from power disruptions.

• Cost Efficiency: Reduces maintenance costs through modular design and remote diagnostics.
• Scalability: Adaptable to evolving system needs with configurable processing power.
• Safety Compliance: Meets global standards for hazardous environments, ensuring operator and equipment protection.
