Product Overview
The Hirschmann MM3 – 2FXM2 – 2TX1 is a high – performance media module belonging to Hirschmann’s MICE series of switches. Renowned for its excellence in industrial networking, Hirschmann has designed the MM3 – 2FXM2 – 2TX1 to meet the demanding requirements of modern industrial automation systems.
This module serves as a crucial component in establishing reliable and efficient network connections within industrial environments. It offers a combination of 10/100Base – TX and 100Base – FX interfaces, with 2 ports for 100Base – FX (using multi – mode fiber) and 2 ports for 10/100Base – TX (using RJ45 connectors for twisted – pair cables). This configuration allows for seamless integration with a variety of devices, such as sensors, actuators, and other network – enabled equipment in an industrial setup.
In an industrial automation system, the Hirschmann MM3 – 2FXM2 – 2TX1 plays a vital role in facilitating data transfer between different components. It ensures that data is transmitted accurately and quickly, which is essential for real – time control and monitoring applications. Whether it is in a manufacturing plant, a power generation facility, or a transportation infrastructure, this module helps in maintaining the smooth operation of the overall network, contributing to enhanced productivity and reduced downtime.E-mail :sales@ygplc.com.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MM3 – 2FXM2 – 2TX1 |
| Manufacturer | Hirschmann |
| Product Type | Media Module |
| Port Configuration | 2 x 100Base – FX (multi – mode fiber) ports, 2 x 10/100Base – TX (RJ45, twisted – pair) ports |
| Auto – Features | Auto – cross, auto – negotiation, auto – polarity recognition |
| Power Consumption | Approximately 3.4W |
| Mean Time Between Failures (MTBF) | 74.9 years (calculated according to MIL – HDBK 217F at 25 °C) |
| Dimensions (L x W x H) | 38 mm x 134 mm x 118 mm |
| Weight | 180 g |
| Operating Temperature Range | – 40 °C to + 70 °C |
| Humidity Tolerance | 0% – 95% non – condensing |
| Network Distance – Cable Length (Twisted – Pair) | 0 – 100m |
| Network Distance – Cable Length (Multi – mode Fiber) | Depends on fiber type and quality, typically up to several kilometers for short – reach applications |

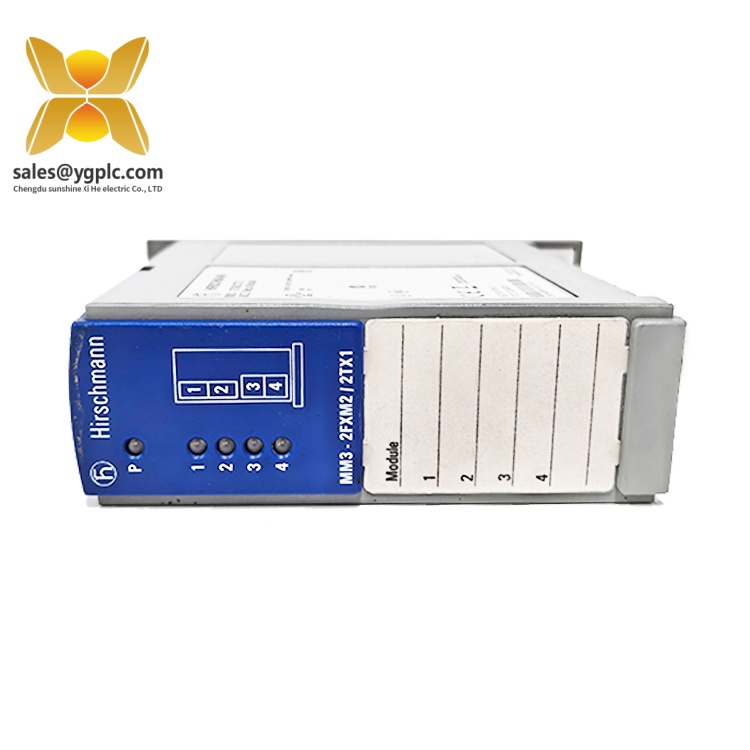

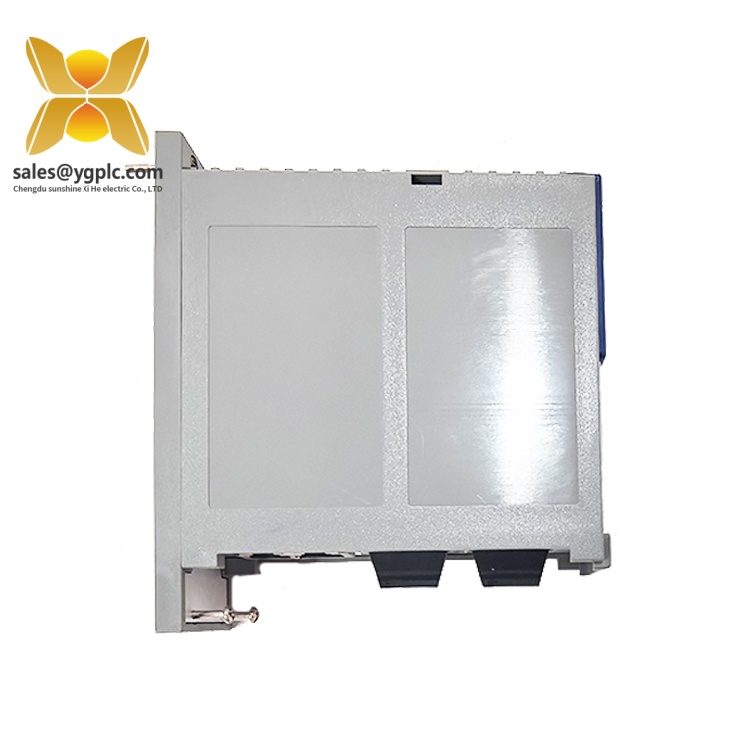

MM3-2FXM2-2TX1
Main Features and Advantages
Versatile Port Configuration
The Hirschmann MM3 – 2FXM2 – 2TX1 comes with a versatile port configuration. The 2 multi – mode fiber 100Base – FX ports are ideal for long – distance data transmission, reducing signal interference and allowing for high – speed data transfer over greater distances. The 2 10/100Base – TX RJ45 ports, on the other hand, are convenient for connecting to devices in close proximity, providing flexibility in network setup. This combination enables seamless integration of different types of devices in an industrial network, whether they are located nearby or far apart.Whatsapp:+86 18859254943.
Advanced Auto – Features
Equipped with auto – cross, auto – negotiation, and auto – polarity recognition features, the MM3 – 2FXM2 – 2TX1 simplifies the installation and maintenance process. Auto – cross eliminates the need for crossover cables, as the module can automatically detect and adjust the cable connection type. Auto – negotiation enables the module to communicate with connected devices and establish the best possible data transfer rate and duplex mode. Auto – polarity recognition ensures that the correct connection polarity is maintained, even if the cables are connected incorrectly, reducing the chances of connection failures due to polarity issues.
High Reliability
Designed for industrial use, the Hirschmann MM3 – 2FXM2 – 2TX1 offers high reliability. With a long MTBF of 74.9 years (at 25 °C according to MIL – HDBK 217F), it can operate continuously in harsh industrial environments. It can withstand extreme temperatures ranging from – 40 °C to + 70 °C and high humidity levels up to 95% non – condensing. This makes it suitable for use in applications where equipment must operate reliably under challenging conditions, such as in oil and gas plants, mining operations, and outdoor transportation systems.

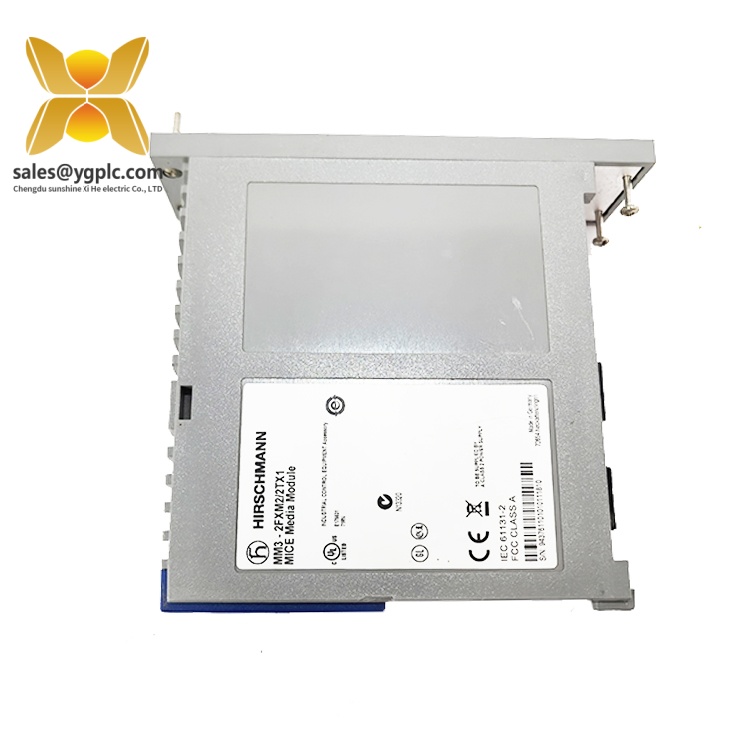

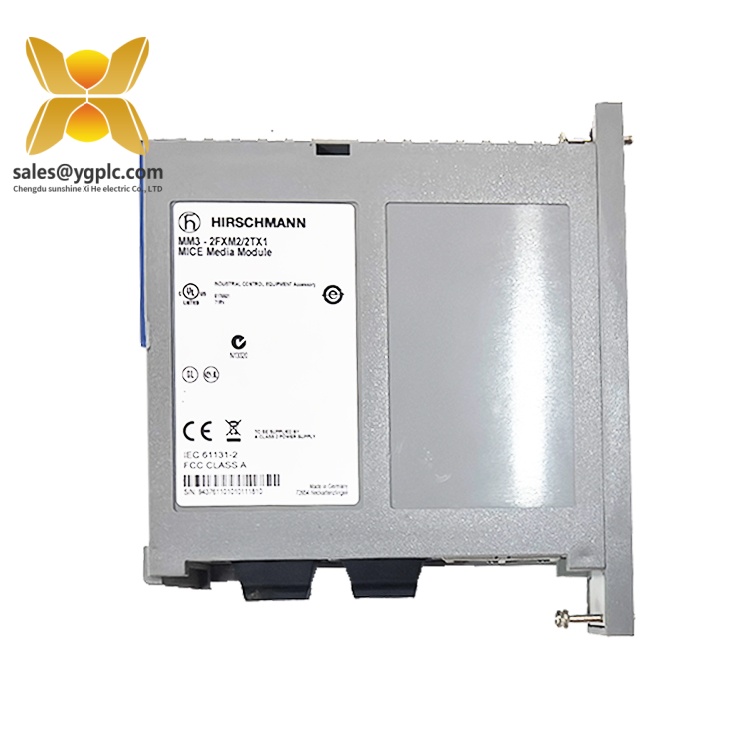

MM3-2FXM2-2TX1
Compact and Lightweight Design
The module’s compact dimensions of 38 mm x 134 mm x 118 mm and lightweight construction of 180 g make it easy to install and integrate into existing network setups. Its small size allows for space – saving installations, even in areas with limited space, such as control cabinets or small industrial enclosures.Whatsapp:+86 18859254943.
Application Areas
Manufacturing Industry
In manufacturing plants, the Hirschmann MM3 – 2FXM2 – 2TX1 is used to connect various components of the production line. It can link sensors on the factory floor, which monitor parameters like temperature, pressure, and vibration, to control systems. For example, in an automotive manufacturing plant, it can connect the sensors on robotic arms to the central control unit, ensuring real – time data transfer for precise control of the robotic movements. This helps in improving production efficiency, reducing errors, and enhancing the overall quality of the manufacturing process.

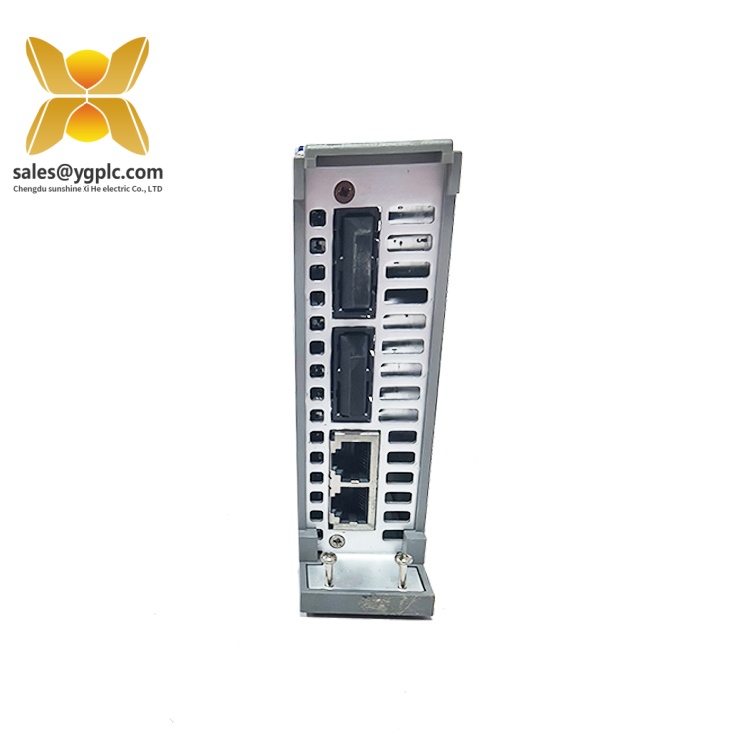

MM3-2FXM2-2TX1
Power Generation
Power generation facilities, including thermal, hydro, and wind power plants, rely on the MM3 – 2FXM2 – 2TX1 for their network connectivity. In a thermal power plant, it can be used to connect the sensors that monitor the boiler’s temperature, pressure, and fuel flow to the distributed control system (DCS). This enables the DCS to receive accurate and timely data, allowing for efficient control of the power generation process. In wind farms, the module can connect the sensors on wind turbines to the monitoring and control center, facilitating remote monitoring and control of the turbines’ operations.
Transportation
In transportation systems, such as intelligent transportation systems (ITS) and rail networks, the Hirschmann MM3 – 2FXM2 – 2TX1 is used for reliable data communication. In ITS, it can connect traffic sensors, such as cameras and traffic flow detectors, to the central traffic management system. This enables real – time traffic monitoring and control, helping to optimize traffic flow and reduce congestion. In rail networks, the module can be used to connect the on – board control systems of trains to the track – side monitoring and control equipment, ensuring safe and efficient train operations.E-mail :sales@ygplc.com.
Related Products
- MM2 – 2FXM2: This is another media module from Hirschmann. It has a different port configuration compared to the MM3 – 2FXM2 – 2TX1, with 2 multi – mode fiber 100Base – FX ports but no 10/100Base – TX ports. It may be suitable for applications where only fiber – optic connections are required.
- MM3 – 1FXS2/3TX1: A media module with 1 single – mode fiber 100Base – FX port and 3 10/100Base – TX ports. The use of single – mode fiber in this module makes it suitable for longer – distance and more demanding applications compared to the MM3 – 2FXM2 – 2TX1 which uses multi – mode fiber.
- MS20 – 0800SAAE: A backplane for Hirschmann’s MICE series switches. It provides the infrastructure for connecting multiple media modules, including the MM3 – 2FXM2 – 2TX1, to build a more complex and scalable network.
- M – SFP – SX/LC: An SFP transceiver that can be used in conjunction with Hirschmann switches. It can be paired with the MM3 – 2FXM2 – 2TX1 to expand the fiber – optic connectivity options, especially when more SFP – based connections are needed.
- MM3 – 2FXM4/2TX1: Similar to the MM3 – 2FXM2 – 2TX1, but with 2 multi – mode fiber 100Base – FX ports using ST sockets instead of the SC sockets in MM3 – 2FXM2 – 2TX1, and 2 10/100Base – TX ports. This may be preferred in applications where ST – type fiber connections are more commonly used.
MM3-2FXM2-2TX1
Installation and Maintenance
Installation Preparations: Before installing the Hirschmann MM3 – 2FXM2 – 2TX1, ensure that the power to the entire network system is turned off. Check the compatibility of the module with the existing switch backplane or network device. Verify that the cables used for connection, both fiber – optic and twisted – pair, are in good condition and of the correct type. Prepare the necessary tools, such as cable strippers and screwdrivers if required for mounting. Also, make sure that the installation environment meets the temperature and humidity requirements specified for the module.E-mail :sales@ygplc.com.
Maintenance Recommendations: Regularly inspect the MM3 – 2FXM2 – 2TX1 for any signs of physical damage, such as cracks in the casing or loose cable connections. Monitor the network traffic passing through the module to detect any abnormal data transfer rates or packet losses. Clean the ports of the module periodically to remove dust and debris, which could affect the connection quality. If any issues are detected, refer to the product manual for troubleshooting steps. In case of complex problems, contact Hirschmann’s technical support or a qualified network technician for assistance.
Product Assurance
Our company provides a one – year quality warranty for the Hirschmann MM3 – 2FXM2 – 2TX1, covering hardware failures not caused by human factors. During this period, if the product experiences performance anomalies or functional failures, we will provide replacement services. Additionally, for discontinued models or urgent requirements, we rely on our global supply chain network to quickly respond to customers’ procurement needs for scarce spare parts, supporting the continuous and stable operation of industrial systems.
