Product Overview

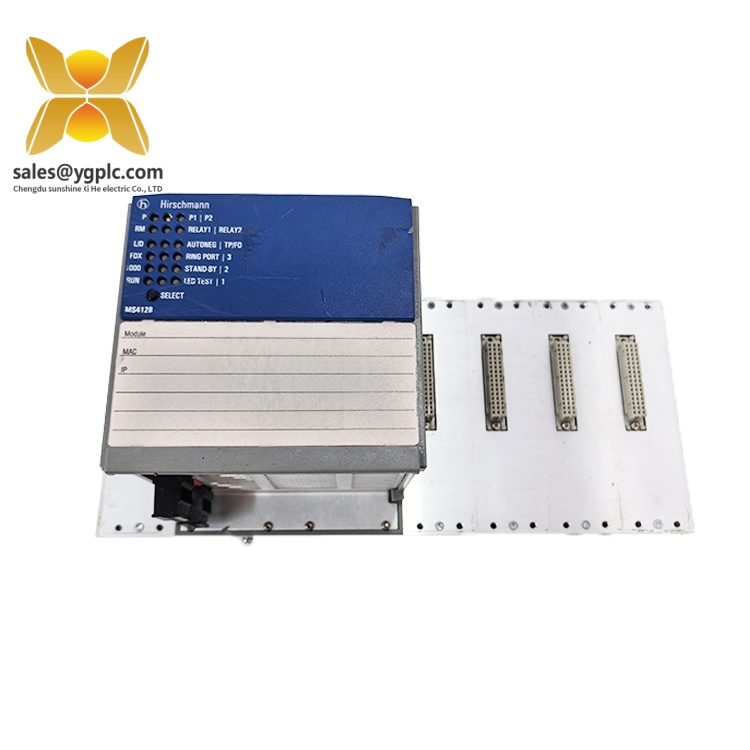

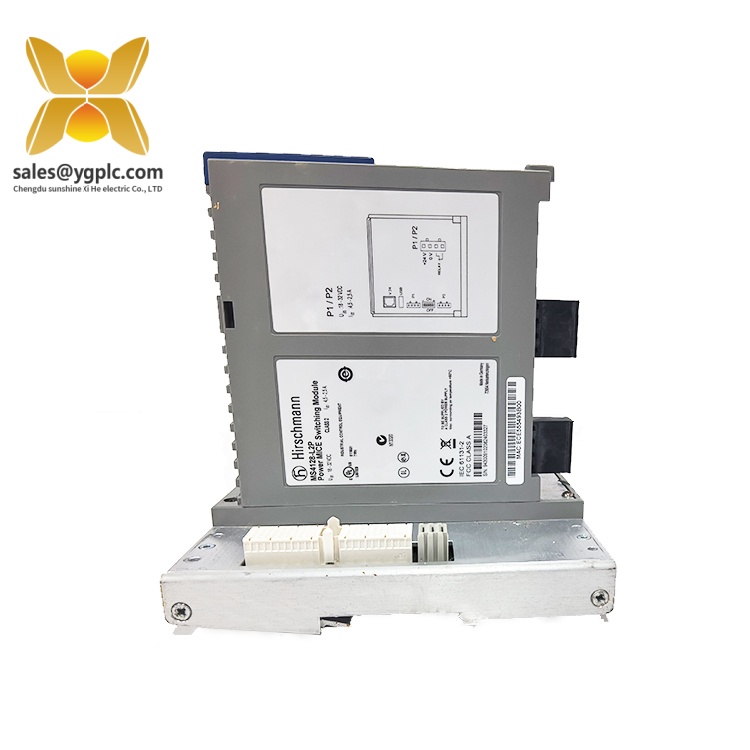

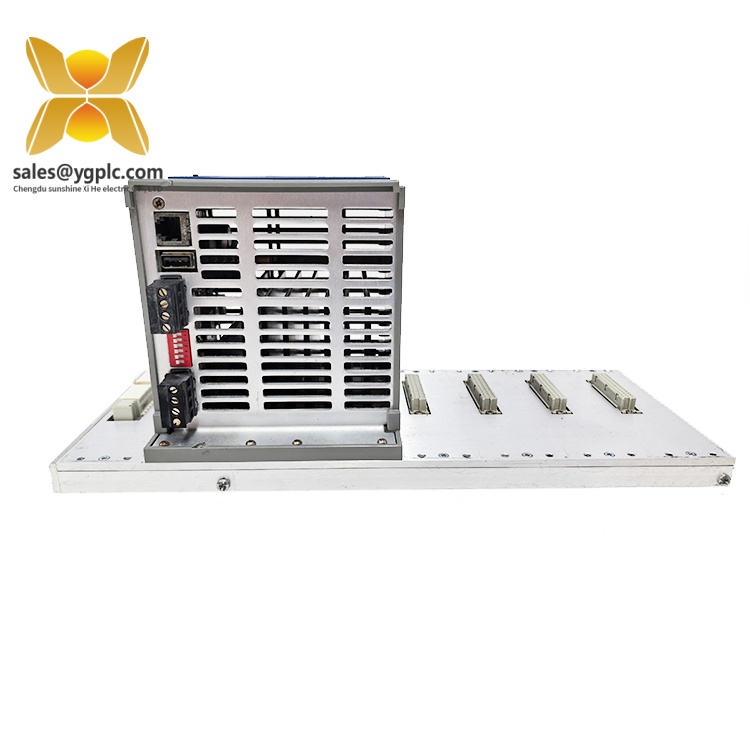

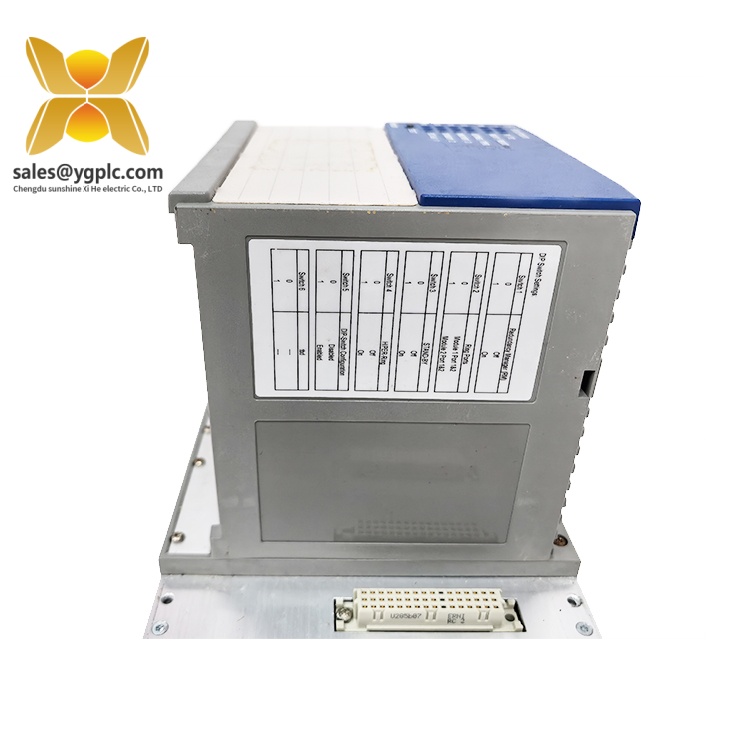

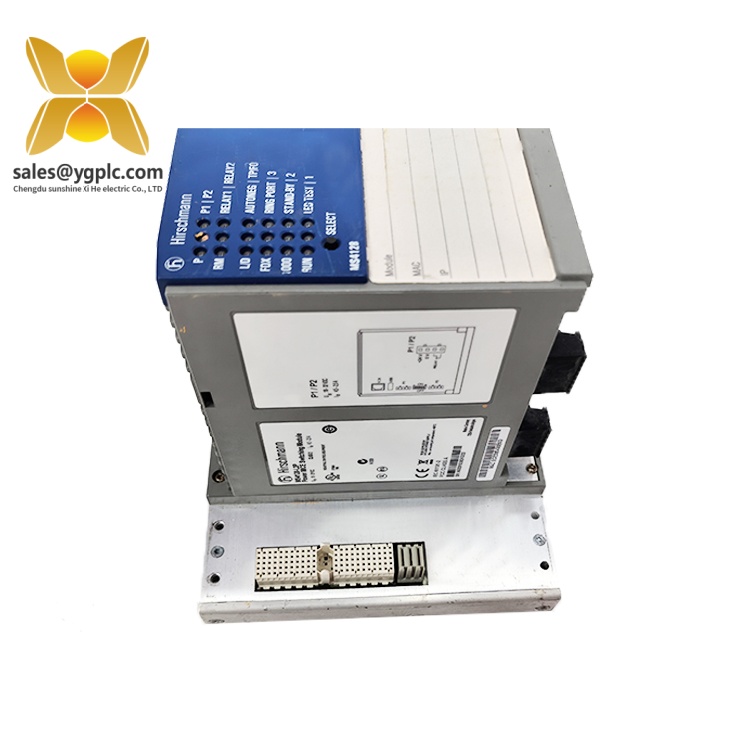

The Hirschmann MS4128 – L2P is a high – performance industrial Ethernet modular rail – mountable switch by Hirschmann, a well – respected name in industrial networking. As part of the Power MICE series, it’s designed to meet the demanding requirements of modern industrial automation systems.
This switch operates in a store – and – forward switching mode and comes equipped with two – layer professional – edition software. Its modular design allows for great flexibility in configuring the network. By using media modules, the total number of ports can reach up to 28. It features 4 Combo ports that can be either gigabit twisted – pair (10/100/1000 Mbit) or SFP fiber (1000 Mbit), providing versatility in connection types. Additionally, through the expansion baseplate MB – 2T, it can support 24 fast Ethernet ports (100 Mbit). This configuration makes the Hirschmann MS4128 – L2P suitable for a wide range of industrial applications where high – speed and reliable data transfer is crucial. Whether it’s connecting sensors, actuators, PLCs, or other network – enabled devices in a factory setting, or establishing communication links between different parts of a large – scale industrial plant, this switch plays a pivotal role in ensuring seamless data flow and network stability.Whatsapp:+86 18859254943.

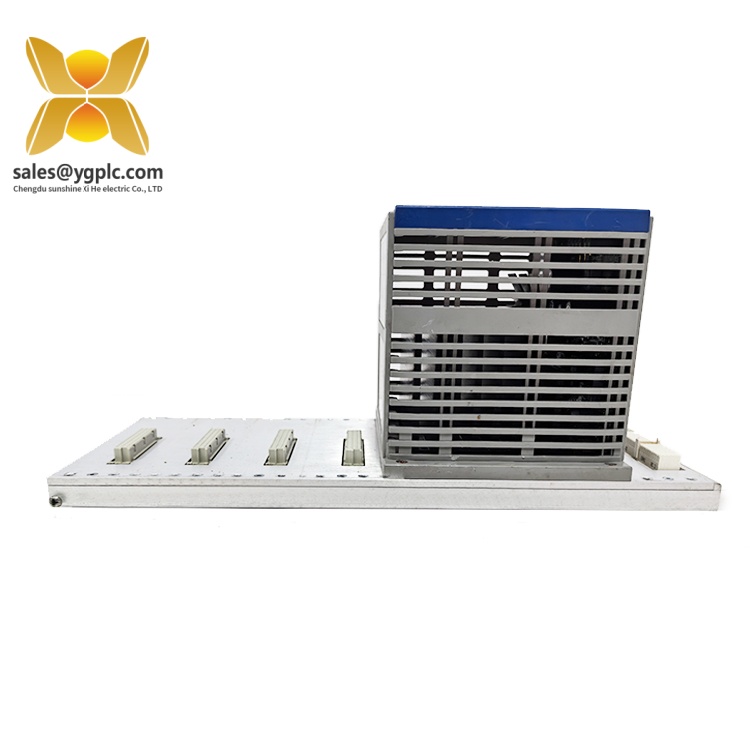

MS4128-L2P
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | MS4128 – L2P |
| Manufacturer | Hirschmann |
| Product Type | Industrial Ethernet Modular Rail – mountable Switch |
| Switching Mode | Store – and – Forward |
| Software Version | Two – layer Professional – edition |
| Port Configuration | Up to 28 ports: 4 Combo ports (10/100/1000 Mbit twisted – pair or 1000 Mbit SFP fiber) and 24 fast Ethernet ports (100 Mbit via MB – 2T) |
| Power Requirements | Working voltage: 24 V DC (- 25% ~ + 30%); Current consumption at 24 V DC: 630 mA (without media modules) |
| Output Power | 15 W (without media modules) |
| Environmental Conditions | Operating temperature: 0 °C ~ 60 °C; Storage and transportation temperature: – 25 °C ~ 70 °C; Relative humidity (non – condensing): 10% ~ 95% |
| Average MTBF | 24.2 years (calculated according to MIL – HDBK – 217F standard) |
| Mechanical Structure | Dimensions (W x H x D): 315 mm x 134 mm x 140 mm; Mounting method: Rail – mountable |
| Weight | 2200 g |
| Protection Level | IP20 |
| Network Scale – Series Quantity | No limit in linear/star topology |
| Power/Signal Contacts | 2 insertable terminal blocks, 4 – pin |
Main Features and Advantages
Modular and Flexible Design
The Hirschmann MS4128 – L2P stands out with its modular design. All ports are realized through media modules, enabling users to customize the switch according to their specific needs. For example, in a factory with a mix of fiber – optic and copper – based devices, the 4 Combo ports can be configured to use either SFP fiber modules for long – distance, high – speed connections or gigabit twisted – pair connections for shorter – range, cost – effective setups. The ability to expand the number of fast Ethernet ports to 24 via the MB – 2T baseplate provides further flexibility for connecting a large number of devices, such as sensors and actuators in a complex industrial automation environment.
High – Speed Data Transfer
With support for gigabit Ethernet speeds on its Combo ports and 100 Mbit fast Ethernet on the additional ports, the MS4128 – L2P ensures rapid data transfer. In applications where real – time monitoring and control are essential, such as in a power generation plant where data from various sensors needs to be quickly transmitted to the control center for immediate analysis and action, this high – speed data transfer capability is crucial. It reduces latency, allowing for faster response times and more efficient operation of the overall industrial system.
MS4128-L2P
Reliable Operation in Industrial Environments
Designed for industrial use, this switch can withstand harsh conditions. The wide operating temperature range from 0 °C to 60 °C makes it suitable for use in different industrial settings, from indoor control rooms to outdoor equipment enclosures. The non – condensing relative humidity range of 10% – 95% ensures reliable operation even in humid environments. Its IP20 protection level shields the internal components from dust and large – size foreign objects, contributing to its long – term stability. The high MTBF of 24.2 years, calculated according to the MIL – HDBK – 217F standard, indicates its reliability and low probability of failure over time.E-mail :sales@ygplc.com.
Advanced Management Features
The two – layer professional – edition software equips the Hirschmann MS4128 – L2P with a range of advanced management features. It is fully manageable, supporting web – based management, SNMP (Simple Network Management Protocol), and CLI (Command – Line Interface) via a serial connection. Features like VLAN (Virtual Local Area Network) allow for network segmentation, improving security and network performance. IGMP Snooping (Internet Group Management Protocol Snooping) helps in efficient multicast filtering, reducing unnecessary network traffic. Port mirroring enables network administrators to monitor network traffic for troubleshooting and security purposes. These management features provide network managers with greater control over the network, ensuring optimal performance and security.
Application Areas
Factory Automation
In factory automation, the Hirschmann MS4128 – L2P is extensively used to connect various components of the production line. It can link PLCs that control the manufacturing process, robotic arms that perform precise tasks, and conveyor belts that move products along the line. For instance, in an automotive manufacturing plant, the switch can ensure high – speed and reliable communication between the PLCs controlling the assembly of car parts and the sensors that monitor the quality of the parts. The modular design allows for easy expansion as the factory grows or the production process changes, making it a cost – effective solution for long – term use.
MS4128-L2P
Power Generation
Power generation plants, whether thermal, nuclear, or renewable, rely on the MS4128 – L2P for reliable communication. In a thermal power plant, it connects the control systems of turbines, generators, and boilers to the central monitoring station. This enables real – time monitoring of parameters such as temperature, pressure, and power output. In a wind farm, the switch can establish communication between individual wind turbines and the central control center, transmitting data on wind speed, turbine performance, and any potential faults. The high – speed data transfer and reliable operation in harsh environments make it an ideal choice for power generation applications.E-mail :sales@ygplc.com.
Transportation and Logistics
In the transportation and logistics sector, the Hirschmann MS4128 – L2P plays a vital role. In ports, it can be used to connect cranes, automated guided vehicles (AGVs), and the terminal management system. The fast Ethernet and gigabit ports ensure quick data transfer, which is essential for coordinating the movement of goods, optimizing loading and unloading operations, and reducing waiting times. In railway systems, the switch can establish communication between train control systems, trackside sensors, and the central control station. This enables real – time monitoring of train positions, speeds, and track conditions, enhancing the safety and efficiency of rail transportation.
Process Control in Chemical and Petrochemical Industries
Chemical and petrochemical industries require precise process control. The MS4128 – L2P is used to establish communication links between Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) systems, and field devices such as valves, pumps, and flow meters. The ability to support a large number of ports and its reliable performance in the presence of electromagnetic interference (common in these industries) make it suitable for ensuring accurate and real – time monitoring and control of chemical reactions, fluid flow, and other critical processes.
Related Products
- Hirschmann MS4128 – L3E: This is also a modular industrial Ethernet switch from the Power MICE series. Unlike the MS4128 – L2P which has a two – layer professional – edition software, the MS4128 – L3E comes with a three – layer enhanced – edition software. It is suitable for more complex network setups that require advanced routing and network layer management features.

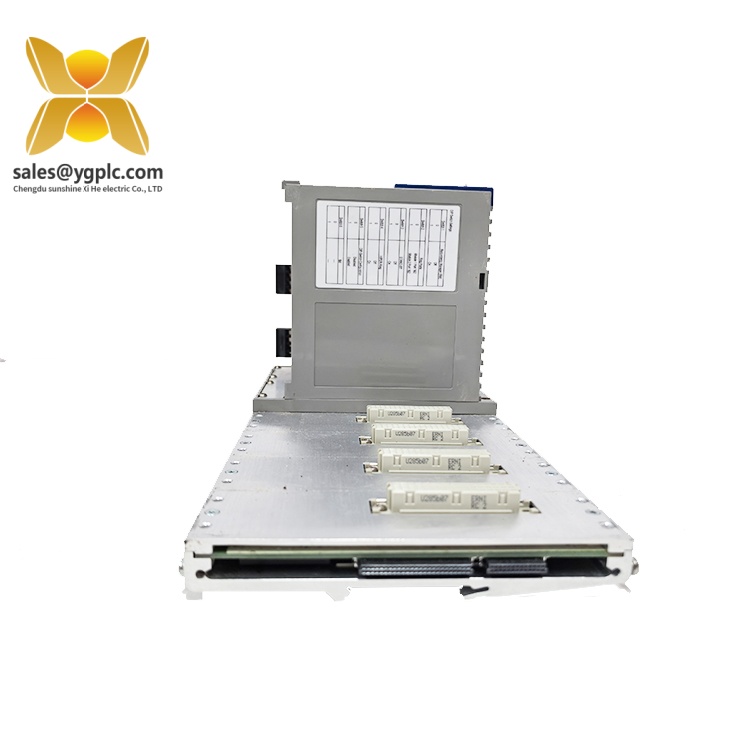

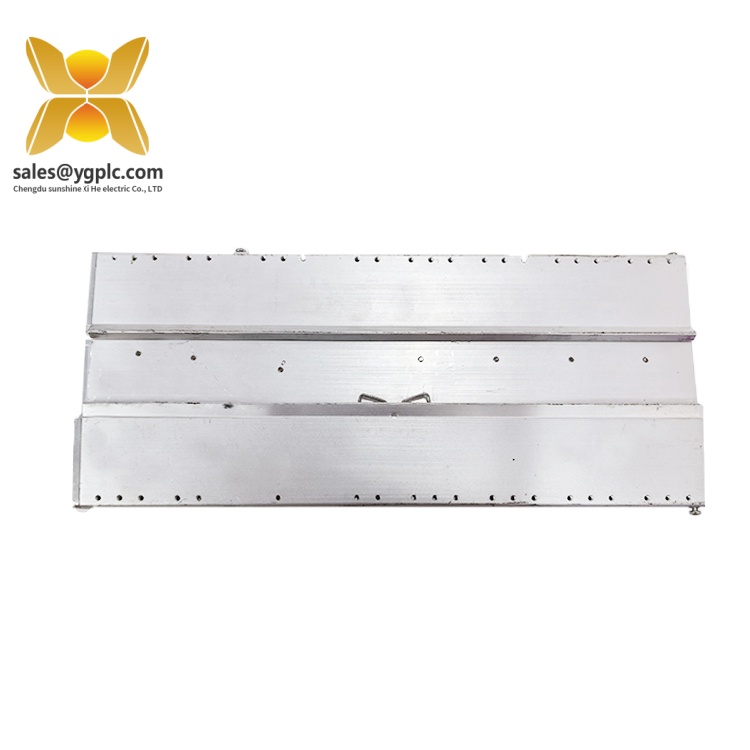

- Hirschmann MB – 2T: It is an expansion baseplate for the MS4128 – L2P and other compatible Hirschmann switches. By using the MB – 2T, the MS4128 – L2P can expand its fast Ethernet port capacity to 24, enabling connection of more devices in an industrial network.Whatsapp:+86 18859254943.
- Hirschmann MM2 – 4TX1: A media module that can be used with the MS4128 – L2P. It provides 4 x 10/100Mbps RJ45 ports, allowing for easy connection of devices with copper – based Ethernet interfaces. This module is useful when there is a need to add more RJ45 – based connections to the switch.
- Hirschmann MM2 – 4FXM3: Another media module compatible with the MS4128 – L2P. It offers 4 x 100Mbps fiber – optic ports, which can be used to establish long – distance or high – bandwidth connections in the industrial network. It is a great choice when fiber – optic connectivity is required for specific devices or network segments.
- Hirschmann RS20 – 1600T1T1SDAPHC: This is an all – electric port, 16 – port 10/100Mbps switch from the RS20 series. While the MS4128 – L2P is a modular switch with a focus on expandability and a mix of port types, the RS20 – 1600T1T1SDAPHC is a more straightforward, fixed – port switch. It can be used in smaller – scale industrial networks or as part of a hierarchical network design where the MS4128 – L2P serves as a central, more complex switch for overall network management.
Installation and Maintenance
Installation Preparations: Before installing the Hirschmann MS4128 – L2P, first, ensure that the power to the network system is turned off to avoid electrical hazards. Check the compatibility of the switch with the existing network infrastructure, including other switches, routers, and network devices. Prepare the appropriate media modules according to the network requirements, such as SFP fiber modules for fiber – optic connections or RJ45 – based media modules for copper – based connections. Mount the switch on the DIN rail using the provided mounting hardware, ensuring a secure fit. Connect the power cables to the 2 – pin insertable terminal blocks, making sure to observe the correct polarity. After physically installing the switch, power it on and use the web – based interface, SNMP, or CLI to configure the switch settings, such as IP address, subnet mask, VLANs, and port configurations.Whatsapp:+86 18859254943.
Maintenance Recommendations: Regularly monitor the status of the Hirschmann MS4128 – L2P through its management interface. Check for any error indicators, such as link failures, high packet loss, or abnormal port activity. Periodically clean the switch to remove dust, as dust accumulation can affect its performance and lifespan. Check the power supply regularly to ensure it is providing the correct voltage. If any media modules need to be replaced, power off the switch, carefully remove the faulty module, and insert a new, compatible one. Keep the switch’s firmware up – to – date by checking for and installing the latest firmware updates from Hirschmann. These updates often include performance improvements, bug fixes, and new features that can enhance the switch’s operation.
Maintenance Recommendations: Regularly monitor the status of the Hirschmann MS4128 – L2P through its management interface. Check for any error indicators, such as link failures, high packet loss, or abnormal port activity. Periodically clean the switch to remove dust, as dust accumulation can affect its performance and lifespan. Check the power supply regularly to ensure it is providing the correct voltage. If any media modules need to be replaced, power off the switch, carefully remove the faulty module, and insert a new, compatible one. Keep the switch’s firmware up – to – date by checking for and installing the latest firmware updates from Hirschmann. These updates often include performance improvements, bug fixes, and new features that can enhance the switch’s operation.
Product Assurance
Our company provides a one – year quality warranty for the Hirschmann MS4128 – L2P, covering hardware failures due to non – human factors. During the warranty period, if the product exhibits performance anomalies or functional failures, we will provide replacement services. Moreover, for discontinued models or urgent requirements, we rely on our global supply chain network to quickly respond to customers’ procurement needs for scarce spare parts. With 17 years of experience in the industrial control industry, we are committed to ensuring that your industrial systems can operate continuously and stably, backed by our reliable product assurance services.
