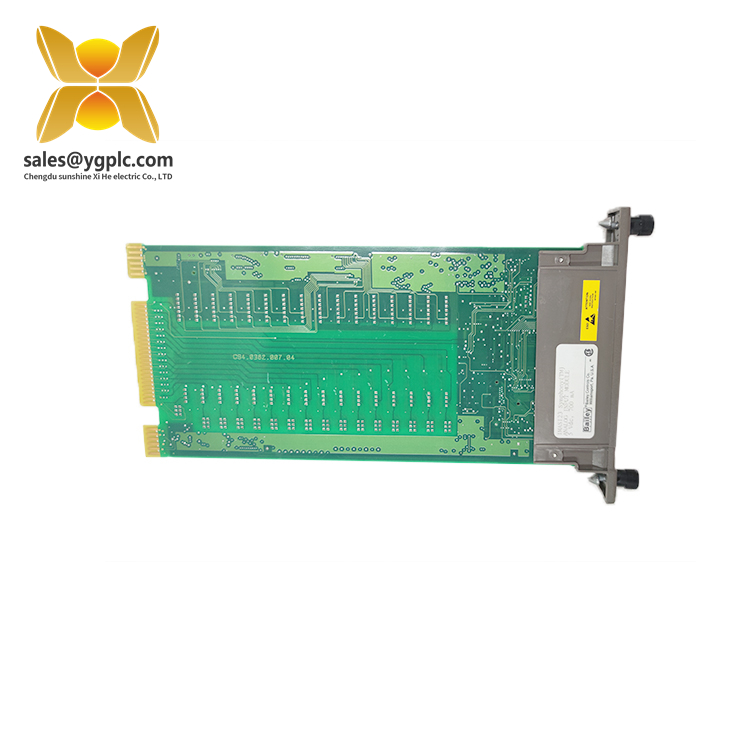

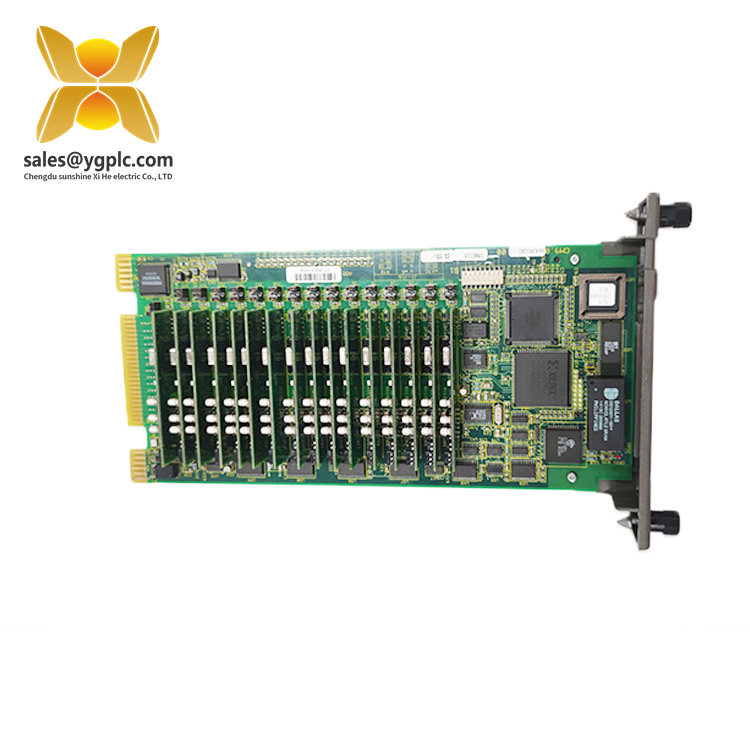

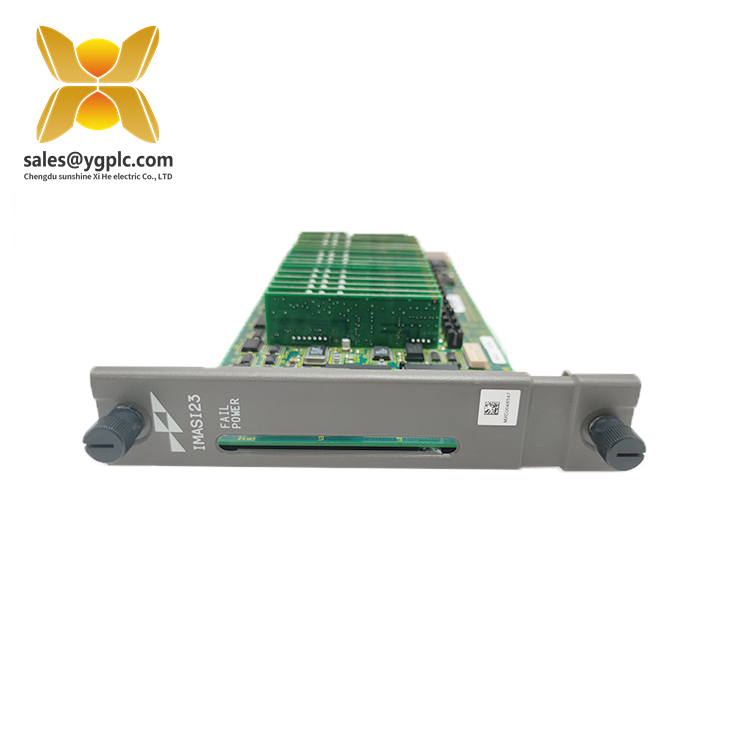

IMASI23 | IMASI13 | IMASO11 | 16-Channel Universal Analog Input Module

IMASI23 | IMASI13 | IMASO11 | 16-Channel Universal Analog Input Module ABB

Original price was: $8,000.00.Current price is: $7,050.00.

Product Parameters

  • Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards for reliable performance in industrial environments.
  • Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
  • Package: Secure anti-static packaging with foam padding, including mounting brackets, user manual, and calibration certificate.
  • Mounting Type: DIN rail or panel-mountable via screw holes, compatible with standard industrial enclosures for flexible installation.
  • Dimensions: Compact design (73.66 mm depth × 360.68 mm height × 269.24 mm width) for space-efficient integration.
Get a Quote
Category: Tags: Brand:

Description

Brand：ABB

Model：IMASI23

Product Parameters

  • Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards for reliable performance in industrial environments.
  • Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
  • Package: Secure anti-static packaging with foam padding, including mounting brackets, user manual, and calibration certificate.
  • Mounting Type: DIN rail or panel-mountable via screw holes, compatible with standard industrial enclosures for flexible installation.
  • Dimensions: Compact design (73.66 mm depth × 360.68 mm height × 269.24 mm width) for space-efficient integration.
  • Surge Protection: Built-in transient voltage suppression up to 2.5 kV (IEC 61000-4-5) safeguards against electrical surges.
  • Compliance:
    • IEC 61131-3 (PLC programming), IEC 61850 (substation automation), and RoHS compliant.
  • Application: Power generation, chemical processing, manufacturing, water treatment, and renewable energy systems.

Product Introduction

The ABB IMASI23 is a high-performance analog input module designed for industrial automation and process control systems. As part of ABB’s advanced automation portfolio, this module bridges the gap between analog sensors and digital control systems, ensuring accurate data acquisition and seamless integration in complex industrial environments.

Key Features:
  1. 16-Channel Universal Input: Supports a wide range of analog signals, including voltage (24 V DC), current (4–20 mA), thermocouples (TC), and resistance temperature detectors (RTD), making it adaptable to diverse sensor types.
  2. High Precision Conversion: Converts analog signals to digital data with 16-bit resolution, minimizing errors and ensuring reliable process monitoring.
  3. Modular Design: Removable terminal blocks simplify installation and maintenance, while DIN rail compatibility enables easy expansion in existing systems.
  4. Wide Input Range: Operates on 24 V DC, 115 V AC, or 230 V AC power sources, ensuring compatibility with global industrial standards.
  5. Robust Construction: IP20-rated housing and wide temperature tolerance (-20°C to +60°C) ensure durability in harsh conditions.
Technical Advantages:
  • Signal Conditioning: Built-in filters reduce noise interference, enhancing signal quality.
  • Redundancy Support: Dual-channel configuration options for critical applications requiring high availability.
  • Remote Configuration: Configurable via ABB’s Automation Builder software for parameter adjustments and diagnostics.

Product Application Industry

  1. Power Generation & Distribution
    • Monitors temperature, pressure, and voltage in thermal, hydroelectric, and renewable energy plants.
    • Enables real-time grid stability analysis and fault detection in substations.
  2. Chemical & Petrochemical
    • Controls reactors, pumps, and valves in refineries and chemical processing units.
    • Ensures safe handling of hazardous materials through precise process variable monitoring.
  3. Manufacturing
    • Optimizes production lines by integrating data from sensors on machinery, conveyor belts, and robotic systems.
    • Supports predictive maintenance by analyzing trends in equipment performance.
  4. Water/Wastewater Treatment
    • Manages water quality parameters (pH, turbidity) and pump operations in treatment facilities.
    • Ensures compliance with environmental regulations through continuous monitoring.
  5. Renewable Energy
    • Converts analog signals from solar panels and wind turbines into actionable data for grid integration.
    • Enhances energy yield by optimizing inverter and battery storage systems.
  6. Transportation & Infrastructure
    • Monitors HVAC systems and lighting in smart buildings and transportation hubs.
    • Supports traffic management by analyzing data from road sensors and surveillance cameras.
Benefits for End-Users:
  • Cost Efficiency: Reduces downtime through modular design and remote diagnostics.
  • Scalability: Adaptable to evolving system needs with expansion modules.
  • Safety Compliance: Meets global standards for hazardous environments, ensuring operator and equipment protection.

Conclusion
The ABB IMASI23 sets a benchmark for reliability and precision in analog input modules, combining advanced technology with rugged design. Its versatility and compatibility with ABB’s automation ecosystem make it an ideal choice for industries requiring seamless data integration and process optimization. Trust ABB to deliver innovative solutions that drive sustainable progress.
