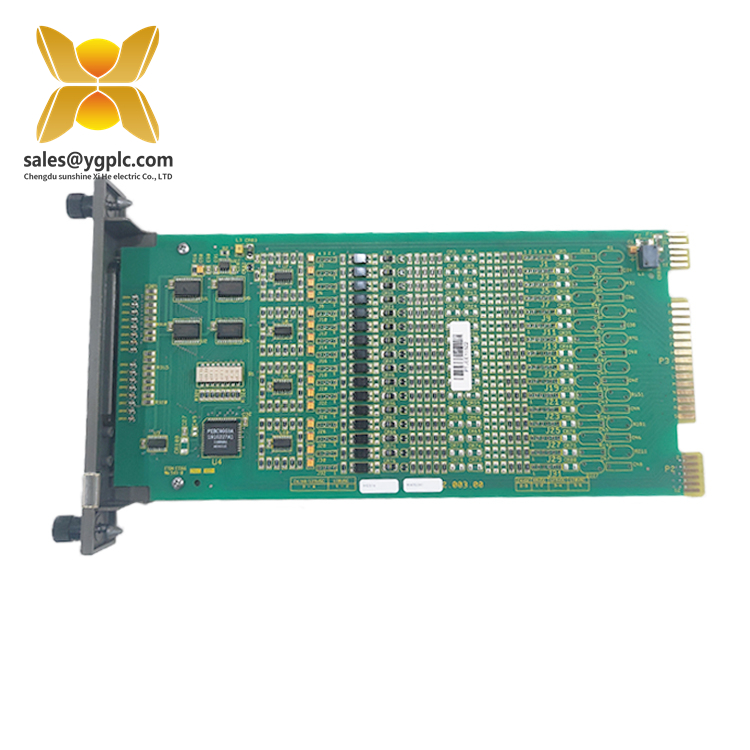

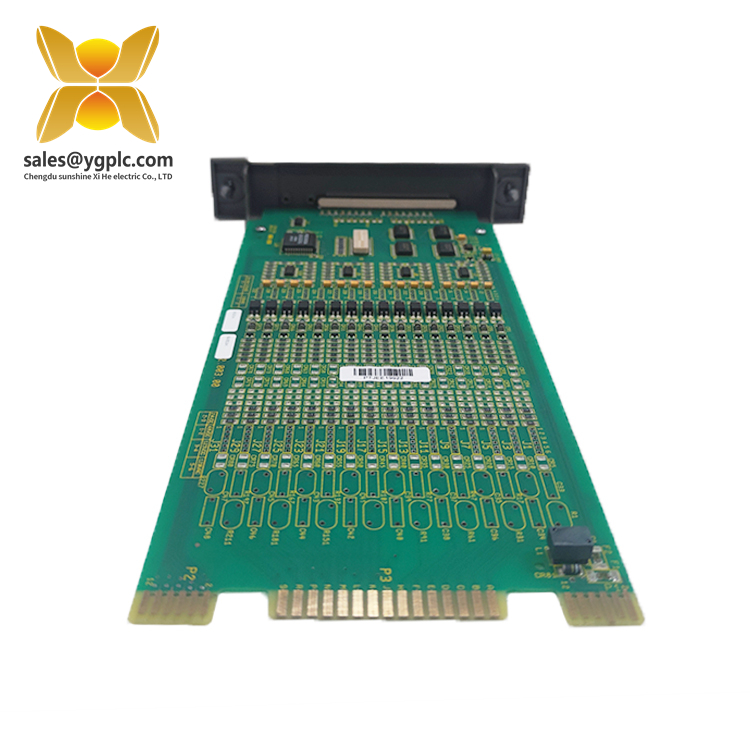

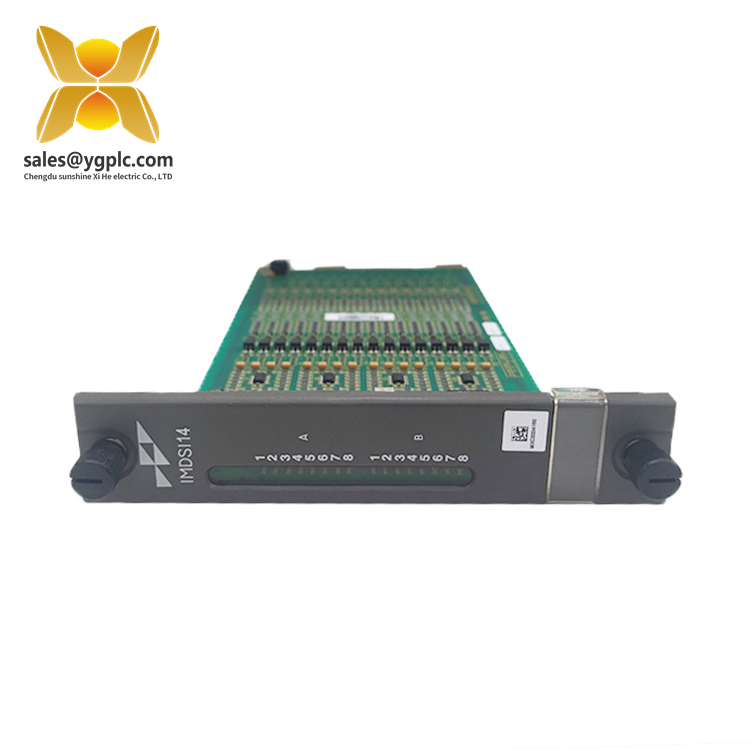

IMDSI14 | IMDSI15 | IMDSO14 | Digital Input Module

Description

Brand：ABB

Model：IMDSI14

Product Parameters

• Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards for reliable performance in industrial environments.
• Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
• Package: Secure anti-static packaging with foam padding, including mounting brackets, user manual, and calibration certificate.
• Mounting Type: DIN rail or panel-mountable via screw holes, compatible with standard industrial enclosures for flexible installation.
• Dimensions: Compact design (110 mm × 60 mm × 30 mm) for space-efficient integration.
• Surge Protection: Built-in transient voltage suppression up to 2.5 kV (IEC 61000-4-5) safeguards against electrical surges.
• Compliance: CE, RoHS, and ISO 9001 certified for safety and environmental sustainability.
• Application: Industrial automation, power generation, chemical processing, water treatment, renewable energy, and transportation infrastructure.

Product Introduction

1. 14-Channel Digital Input: Supports up to 14 isolated digital inputs, enabling simultaneous monitoring of multiple signals for comprehensive process control.
2. Wide Voltage Range: Operates on DC 11–33 V or AC 15–24 V, adapting to diverse power sources in industrial settings.
3. DIP Switch Configuration: Allows users to customize input parameters (e.g., voltage type, filtering) for flexibility in varying applications.
4. High Precision: 16-bit resolution ensures accurate signal conversion, minimizing errors in critical processes.
5. Modular Design: DIN rail compatibility and compact dimensions simplify installation and scalability, reducing downtime during system upgrades.
6. EMI Resistance: Shielded construction minimizes electromagnetic interference for stable performance in noisy industrial environments.



• Hot Swappable: Enables maintenance and upgrades without system shutdowns, enhancing operational continuity.
• Real-Time Monitoring: Configurable via ABB’s automation software for remote diagnostics and parameter adjustments.
• Redundancy Support: Optional dual-channel configurations enhance system reliability for mission-critical applications.

Product Application Industry

1. Industrial Automation
   • Manufacturing: Integrates with PLCs and robotic systems to monitor assembly lines, conveyor belts, and machinery in automotive, electronics, and food processing plants.
   • Process Control: Manages digital signals from sensors, switches, and actuators in chemical and petrochemical facilities, ensuring safe and efficient operations.
2. Power Generation & Distribution
   • Substations: Monitors circuit breakers, transformers, and feeders to ensure grid stability and rapid fault response.
   • Renewable Energy: Optimizes energy flow in solar/wind farms by converting analog signals from inverters and turbines into actionable data.
3. Water/Wastewater Treatment
   • Pump Stations: Controls pump operations and monitors water quality parameters (e.g., pH, turbidity) for efficient resource management.
   • Treatment Plants: Ensures compliance with environmental standards through continuous data acquisition from sensors.
4. Transportation Infrastructure
   • Railways: Manages signaling systems and traction power for metros and trains, enhancing safety and operational efficiency.
   • Aviation: Supports power distribution in airports, ensuring reliable ground operations and critical systems.
5. Commercial & Residential
   • Smart Buildings: Controls HVAC, lighting, and security systems, reducing energy costs and enhancing sustainability.
   • Critical Infrastructure: Safeguards hospitals, data centers, and emergency services from power disruptions.



• Cost Efficiency: Reduces maintenance costs through modular design and remote diagnostics.
• Scalability: Adaptable to evolving system needs with expansion capabilities.
• Safety Compliance: Meets global standards for hazardous environments, ensuring operator and equipment protection.
