ABB KUC755AE105 3BHB005243R0105: High-Reliability Drive Power Supply for Industrial Automation
Product Overview
The ABB KUC755AE105 3BHB005243R0105 is a high-performance drive power supply designed to deliver stable and efficient power to industrial automation systems. As part of ABB’s advanced industrial drive solutions, this module ensures seamless operation of AC drives in critical applications such as motor control, robotics, and material handling. The KUC755AE105 3BHB005243R0105 bridges the gap between power distribution systems and machinery, converting three-phase input voltage into a regulated single-phase output to meet the precise energy demands of industrial equipment.
Engineered for durability and adaptability, the ABB KUC755AE105 3BHB005243R0105 supports a wide input voltage range (380–480 V AC) and provides a consistent 480 V AC output at 105 A. Its compact design (210 × 110 × 125 mm) and lightweight construction (2.5 kg) make it suitable for space-constrained environments, while its high efficiency (94%) and power factor (0.99) reduce energy waste and operational costs. Compliance with global standards like CE, UL, and RoHS ensures compatibility with international industrial requirements.
In automation setups, the KUC755AE105 3BHB005243R0105 acts as a vital component for maintaining system reliability. By stabilizing power delivery to drives, it minimizes voltage fluctuations and protects against overloads, extending the lifespan of connected equipment. Its modular design allows for easy integration with ABB’s broader automation portfolio, including PLCs, sensors, and communication modules, enabling scalable and future-proof solutions.

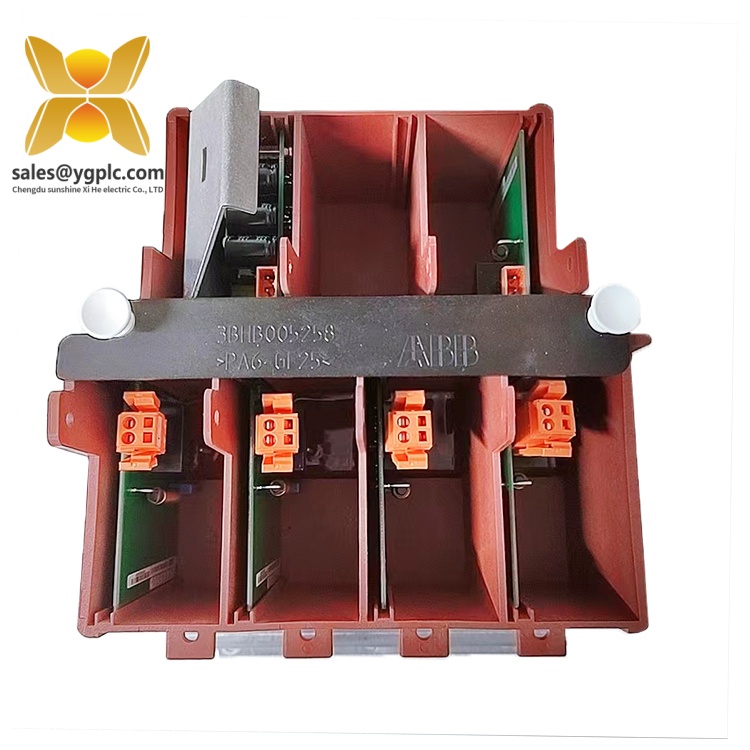

KUC755AE105 3BHB005243R0105
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | ABB KUC755AE105 3BHB005243R0105 |
| Manufacturer | ABB |
| Product Type | Drive Power Supply |
| Input Voltage | 380–480 V AC (three-phase) |
| Output Voltage | 480 V AC (single-phase) |
| Output Current | 105 A |
| Efficiency | 94% |
| Power Factor | 0.99 |
| Dimensions (W×H×D) | 210 mm × 110 mm × 125 mm |
| Weight | 2.5 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, UL, RoHS |
| Warranty | 1 year |
Key Features and Advantages
Stable Power Regulation: The KUC755AE105 3BHB005243R0105 ensures consistent voltage output, protecting drives and motors from voltage spikes or drops. This stability is critical for maintaining process accuracy in applications like precision manufacturing.
High Efficiency: With 94% efficiency, the module minimizes energy losses, contributing to reduced operational costs and carbon footprint. Its power factor correction (0.99) optimizes energy usage further.
Robust Construction: Built to withstand harsh industrial environments, the module operates reliably in extreme temperatures (-20°C to +60°C) and high humidity (5–95% non-condensing). Its rugged design ensures long-term performance in factories, refineries, and outdoor installations.
Modular Integration: Seamlessly compatible with ABB’s AC drive systems and I/O modules, the KUC755AE105 3BHB005243R0105 supports scalable automation setups. It integrates with communication protocols like PROFIBUS DP and Ethernet/IP for real-time monitoring and control.

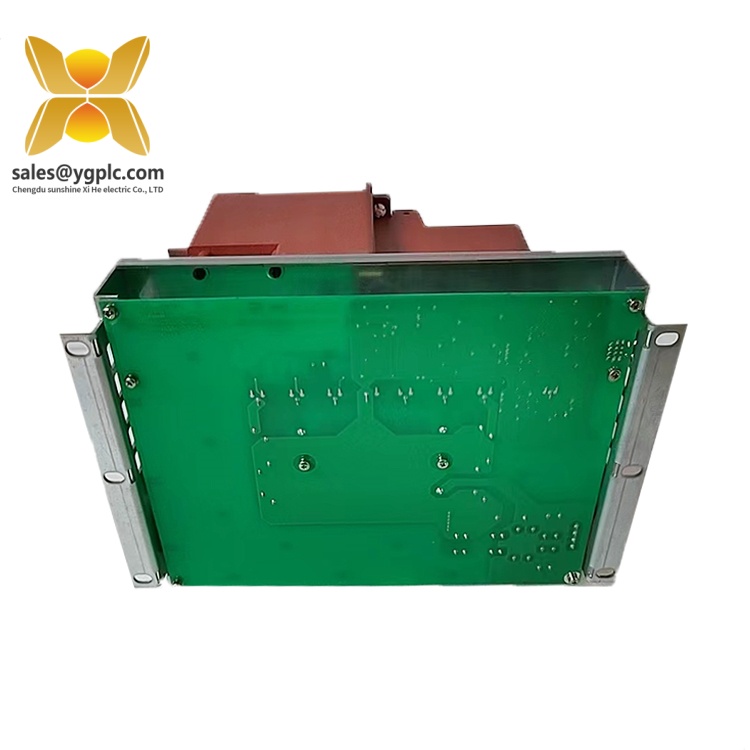

KUC755AE105 3BHB005243R0105
Safety Compliance: Compliance with SIL 3 and EMI/EMC standards ensures safe operation in safety-critical sectors such as oil & gas and power generation.
Application Areas
The ABB KUC755AE105 3BHB005243R0105 excels in industries requiring reliable power management:
- Manufacturing: Powers conveyor systems, robotic arms, and assembly lines, ensuring smooth and continuous operation.
- Energy: Supports pumps, compressors, and generators in power plants and renewable energy installations.
- Chemical & Petrochemical: Maintains stable power for reactors, mixers, and separation units in hazardous environments.
- Water Treatment: Drives pumps and filtration systems, ensuring consistent water supply and wastewater management.
- Transportation: Powers escalators, elevators, and HVAC systems in airports and railways.

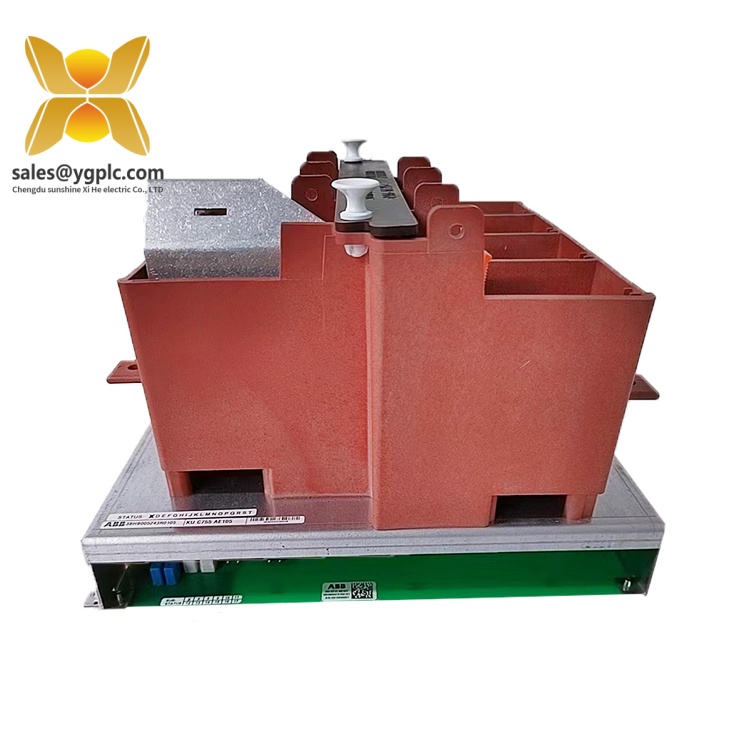

KUC755AE105 3BHB005243R0105
By addressing power instability challenges, the KUC755AE105 3BHB005243R0105 enhances productivity, reduces downtime, and ensures compliance with energy efficiency goals.
Related Products
- ABB KUC755BE105 3BHB005244R0105: Upgraded variant with higher current capacity (120 A) and advanced fault protection.
- ABB CI515 3BSE001428R1: Communication module for PROFIBUS DP integration, extending network capabilities.
- ABB DSAI133A 3BSE018290R1: Analog input module for sensor data acquisition in drive systems.
- ABB DSAP130 3BSE018288R1: Digital output module for actuator control in automated processes.
- ABB PS420 3BSE012345R1: Redundant power supply module for uninterrupted operation in critical applications.
- ABB PM511V16 3BSE031151R1: High-performance PLC controller compatible with ABB drive systems.
- ABB S800 I/O 3BSE043660R1: Distributed I/O system for modular automation setups.
- ABB 3BHB006716R0217: Gate unit power module for advanced motor control applications.
Installation and Maintenance
Installation Preparation:
Mount the KUC755AE105 3BHB005243R0105 in a well-ventilated enclosure, ensuring proper grounding and adherence to voltage ratings. Connect three-phase input cables securely and verify output connections to drives. Use ABB’s configuration tools to set voltage and current parameters.
Mount the KUC755AE105 3BHB005243R0105 in a well-ventilated enclosure, ensuring proper grounding and adherence to voltage ratings. Connect three-phase input cables securely and verify output connections to drives. Use ABB’s configuration tools to set voltage and current parameters.
Maintenance Recommendations:
- Regularly inspect for loose connections, overheating, or physical damage.
- Clean dust and debris from vents to maintain optimal cooling.
- Replace capacitors every 5–7 years to prevent performance degradation.
- Perform annual load tests to validate output stability.

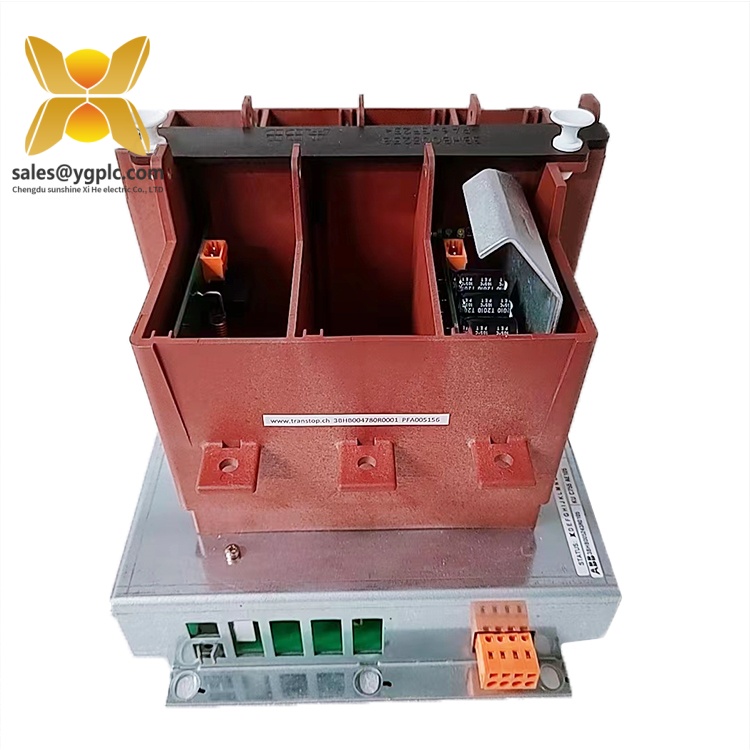

KUC755AE105 3BHB005243R0105
Product Guarantee
Chengdu Sunshine XiHe Electric Co., LTD, a leading industrial automation distributor since 2007, offers a 1-year warranty on the ABB KUC755AE105 3BHB005243R0105. This warranty covers defects in materials and workmanship, with repairs handled by certified technicians. As a trusted supplier of rare and obsolete 工控备件，we ensure rapid delivery and 24/7 technical support to minimize downtime. Our extensive inventory and global sourcing network enable us to meet urgent requirements efficiently, supporting industries worldwide with reliable automation solutions.
