Product Overview
The ABB PFTL101B 20KN 3BSE004203R1 is a high-precision pillow block tension sensor designed for industrial applications requiring reliable force measurement in dynamic environments. As part of ABB’s PFTL series, this sensor leverages advanced Pressductor® technology to convert mechanical stress into an electrical signal, enabling accurate monitoring of tension and compression forces in materials such as strips, wires, and webs. Engineered for durability and performance, the PFTL101B 20KN is widely adopted in industries including metallurgy, paper manufacturing, automotive production, and chemical processing, where precise force control is critical for quality assurance and operational efficiency.
The PFTL101B 20KN features a robust stainless-steel construction and a compact pillow block design, allowing seamless integration into existing machinery and production lines. Its horizontal force-measuring element ensures optimal sensitivity to tension variations while minimizing interference from external factors like vibration and temperature fluctuations. With a measuring range of 2.0–20.0 kN and a protection class of IP66/IP67, this sensor excels in harsh conditions, including wet environments such as paper machine wet ends. By delivering real-time data to control systems, the PFTL101B 20KN empowers operators to maintain consistent tension levels, reduce material waste, and enhance overall process stability.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB PFTL101B 20KN 3BSE004203R1 |
| Manufacturer | ABB |
| Product Type | Pillow Block Tension Sensor |
| Measuring Range | 2.0–20.0 kN |
| Accuracy | ±0.5% of full scale (FS) |
| Output Signal | 2 mV/V (nominal) |
| Power Supply | 24V DC ±10% |
| Operating Temperature | -40°C to +80°C |
| Protection Class | IP66/IP67 |
| Material | Stainless Steel |
| Mounting Type | Horizontal Pillow Block |
| Cable Connection | Cylindrical Plug or Fixed Cable |
| Weight | 1.2 kg |
| Certifications | CE, UL, RoHS |
Key Features and Advantages
-
Pressductor® Technology:
The PFTL101B 20KN utilizes ABB’s proprietary Pressductor® technology, which relies on the magnetoelastic effect to measure force. This method ensures high accuracy and long-term stability, even under continuous load. -
Wide Measuring Range:
With a capacity of 2.0–20.0 kN, the sensor adapts to diverse applications, from lightweight materials in paper production to heavy-duty processes in steel manufacturing. -
Robust Construction:
The stainless-steel housing and IP66/IP67 rating protect against dust, moisture, and corrosive substances, making it suitable for wet or contaminated environments. -
Horizontal Force Measurement:
Unlike vertical sensors, the PFTL101B 20KN measures horizontal force components, eliminating interference from gravitational forces and improving precision in dynamic systems. -
Easy Integration:
Its compact design and standardized mounting interfaces simplify installation in new or retrofitted machinery. Optional configurations (e.g., fixed cable or cylindrical plug) enhance flexibility. -
Temperature Compensation:
Built-in compensation algorithms minimize the impact of temperature variations, ensuring consistent performance across wide operating ranges.

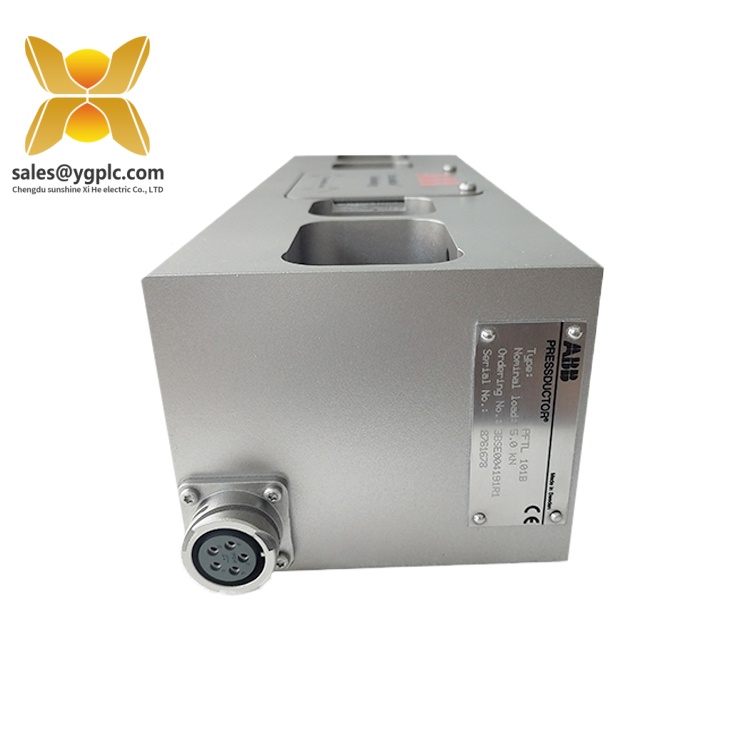

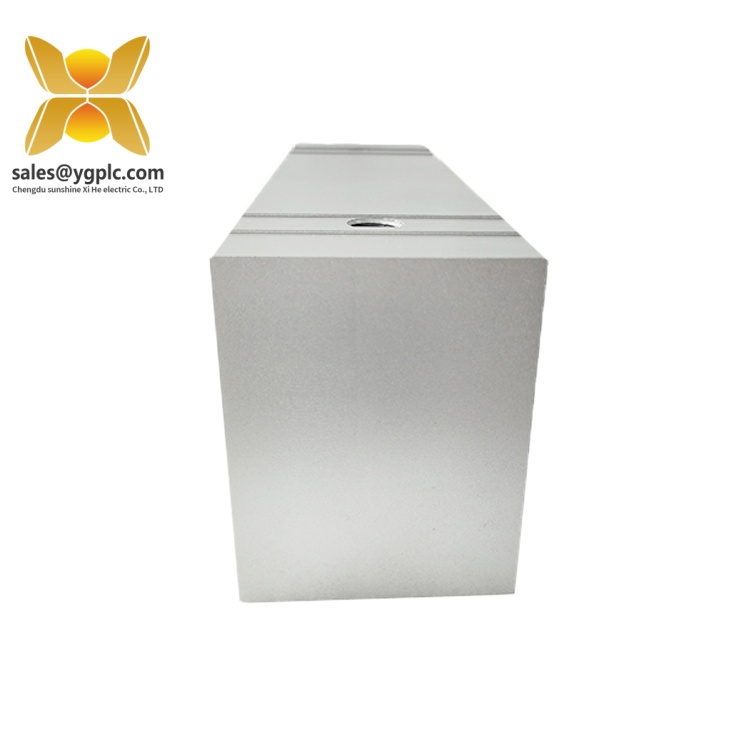

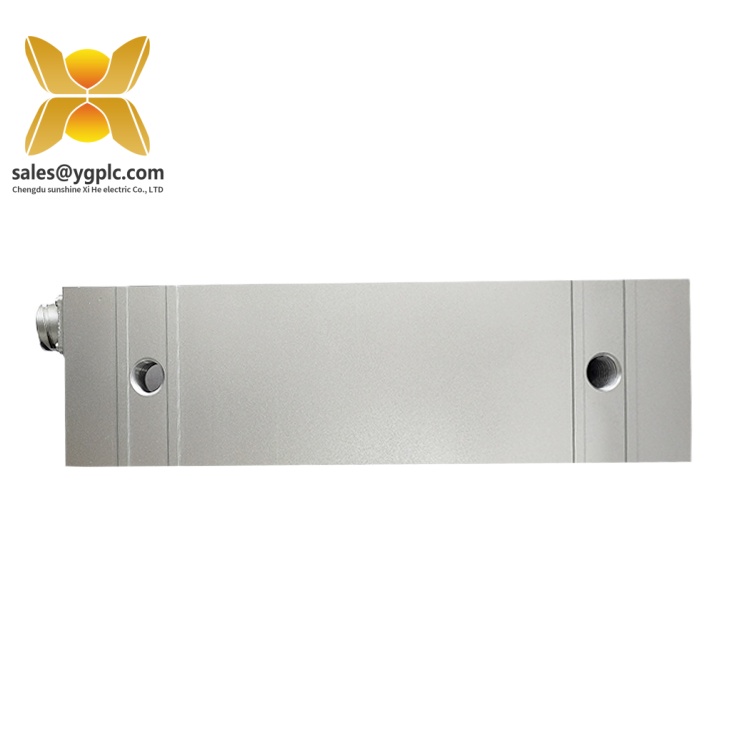

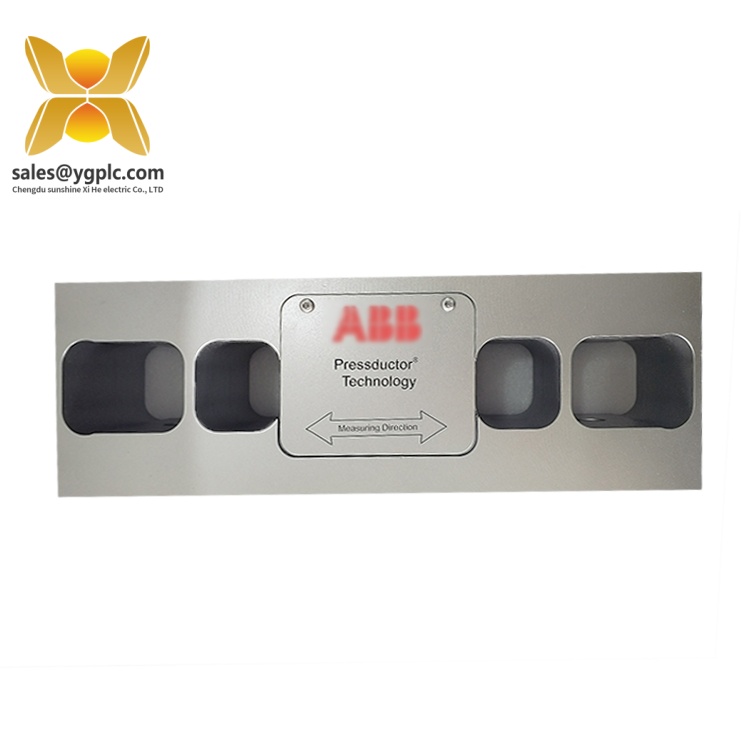

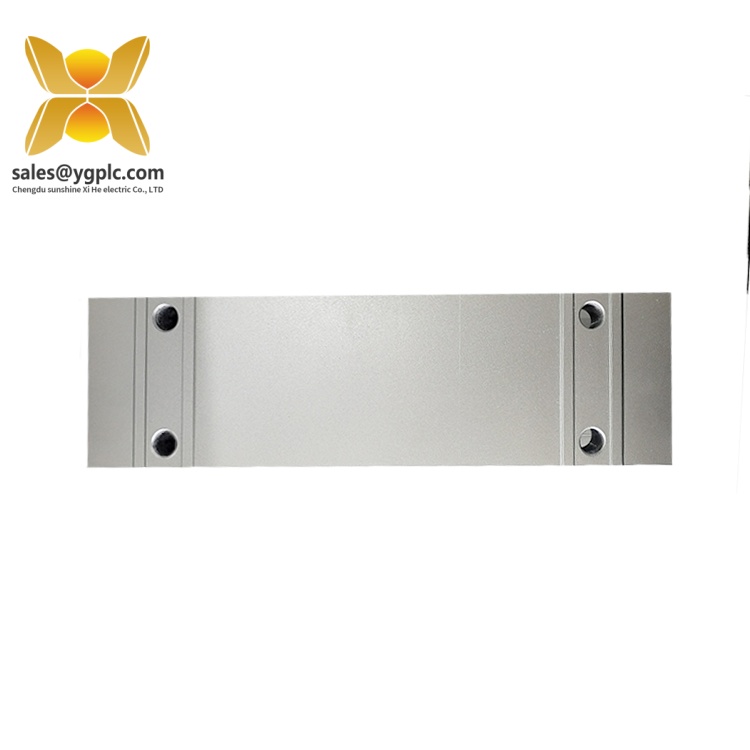

PFTL101B-20KN-3BSE004203R1
Application Areas
The ABB PFTL101B 20KN 3BSE004203R1 is critical in industries where precise tension control is essential:
-
Paper and Pulp:
Used in paper machines to monitor web tension during production, ensuring uniform thickness and reducing 断头率. Acid-resistant variants (e.g., PFTL101BER) are ideal for wet-end processes. -
Metallurgy:
Measures tension in steel and aluminum strip production lines, optimizing rolling processes and preventing material defects. -
Textile and Printing:
Maintains consistent tension in fabric and printing materials, improving product quality and reducing downtime. -
Automotive:
Integrates into assembly lines for tension control in wire harness manufacturing and component testing. -
Chemical Processing:
Monitors tension in conveyor systems handling hazardous materials, ensuring safe and efficient operations. -
Packaging:
Ensures stable tension in packaging films and labels, preventing jams and improving throughput.PFTL101B-20KN-3BSE004203R1
Related Products
- ABB PFTL101AE 2.0KN 3BSE004213R1: A fixed-cable variant with a smaller measuring range (0.2–2.0 kN), suitable for lightweight applications.
- ABB PFTL101BER 20KN: Acid-resistant version for wet-end paper machine environments.
- ABB PFCL201C 50KN: Vertical force sensor with a higher capacity, ideal for heavy-duty industrial processes.
- ABB PFVA401: Rolling force controller compatible with PFTL101B 20KN, offering analog/digital I/O and Ethernet connectivity.
- ABB MC400 Controller: A modular system for powering and processing signals from tension sensors, including the PFTL101B 20KN.
Installation and Maintenance
Installation Preparation:
Ensure the PFTL101B 20KN is mounted horizontally on a stable structure to align with the force direction. Use appropriate fasteners to secure the pillow block and shielded cables to minimize electromagnetic interference. Calibrate the sensor using ABB’s dedicated tools (e.g., PFVA401) to ensure accurate readings.
Ensure the PFTL101B 20KN is mounted horizontally on a stable structure to align with the force direction. Use appropriate fasteners to secure the pillow block and shielded cables to minimize electromagnetic interference. Calibrate the sensor using ABB’s dedicated tools (e.g., PFVA401) to ensure accurate readings.
Maintenance Recommendations:
- Regularly inspect the sensor for physical damage or corrosion, particularly in wet environments.
- Clean the housing with a dry cloth to prevent dust accumulation.
- Verify cable connections for tightness and integrity.
- Replace worn or damaged cables with ABB-approved spares.
- Perform annual calibration checks to maintain accuracy.
PFTL101B-20KN-3BSE004203R1
Product Warranty
Chengdu Sunshine XiHe Electric Co., LTD, a leading industrial automation distributor since 2007, offers a 1-year warranty on the ABB PFTL101B 20KN 3BSE004203R1. This warranty covers defects in materials and workmanship, with repairs or replacements handled by certified technicians. As a trusted supplier of rare and obsolete Industrial control spare parts，we ensure rapid delivery and 24/7 technical support to minimize downtime. Our extensive inventory and global sourcing network enable us to meet urgent requirements efficiently, supporting industries worldwide with reliable automation solutions.
