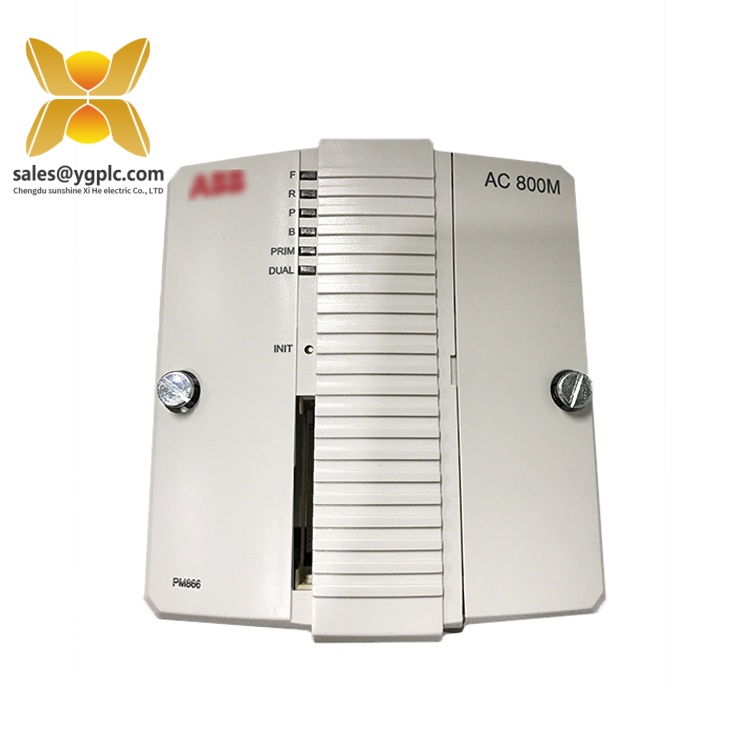

ABB PM866: High-Performance PLC Controller for Advanced Industrial Automation

Product Overview

The ABB PM866 is a high-performance programmable logic controller (PLC) designed to meet the demands of modern industrial automation systems. As part of ABB’s AC800M series, this module combines cutting-edge processing power, scalability, and reliability, making it an ideal choice for applications ranging from manufacturing and energy management to water treatment and transportation. The ABB PM866 serves as the central processing unit (CPU) of a control system, executing complex algorithms, managing real-time data, and coordinating operations across multiple devices.

Equipped with a 32-bit PowerPC processor running at 600 MHz, the ABB PM866 delivers exceptional performance, supporting cycle times as low as 0.1 ms for critical tasks. Its modular architecture allows seamless integration with ABB’s extensive range of I/O modules, enabling users to scale systems from small installations with a few hundred I/O points to large-scale industrial setups. WhatsApp: +86 18859254943.The module’s compatibility with protocols like Ethernet/IP, PROFIBUS DP, and Modbus RTU ensures interoperability with both legacy and state-of-the-art industrial networks, making it a versatile solution for diverse automation needs.

In harsh environments, the ABB PM866 excels, thanks to its robust construction and wide operating temperature range (-25°C to +60°C). Its compliance with SIL 3 safety standards and EMI/EMC regulations further underscores its suitability for safety-critical applications. By leveraging ABB’s Automation Builder software, engineers can efficiently program and diagnose the module, reducing downtime and optimizing operational efficiency.

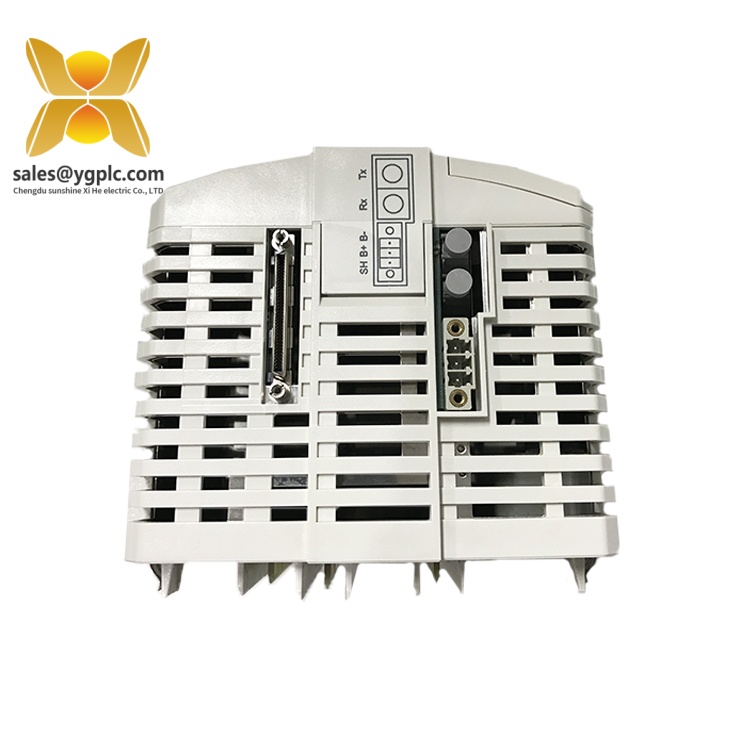

PM866

Technical Specifications

Parameter	Specification
Product Model	ABB PM866
Manufacturer	ABB
Product Type	Programmable Logic Controller (PLC)
Processor	32-bit PowerPC, 600 MHz
Memory	1 GB RAM, 8 GB Flash
I/O Capacity	Supports up to 4,096 I/O points via expansion modules
Communication Interfaces	Ethernet/IP, PROFIBUS DP, Modbus RTU/ASCII, CANopen
Power Supply	24 V DC ±10% (18–26.4 V DC)
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions (W×H×D)	67.5 mm × 76 mm × 54 mm
Weight	0.15 kg
Certifications	CE, UL, RoHS, IEC 61131-2, SIL 3, ISO 9001

Key Features and Advantages

High-Speed Processing: The ABB PM866’s advanced CPU ensures rapid execution of control logic, enabling real-time adjustments in dynamic industrial processes. Its multi-tasking capabilities allow concurrent management of multiple operations, enhancing overall system efficiency.

Scalability and Flexibility: With support for ABB’s PM58x/PM59x I/O modules, the PLC can be tailored to specific requirements, whether for analog, digital, or specialized tasks like motion control. This modular design minimizes upfront costs and adapts to evolving automation needs.

Multi-Protocol Connectivity: Built-in Ethernet/IP and PROFIBUS DP interfaces enable seamless integration with SCADA systems, cloud platforms, and legacy devices. This versatility simplifies network architecture and future-proofs investments.

Reliability and Safety: Compliance with SIL 3 standards and EMI/EMC immunity ensures stable performance in safety-critical environments. Redundant power supply options and error-checking mechanisms further reduce downtime risks.E-mail: sales@ygplc.com

User-Friendly Programming: ABB’s Automation Builder software (IEC 61131-3 compliant) streamlines configuration, debugging, and remote maintenance. Predefined function blocks and intuitive tools accelerate development cycles.WhatsApp: +86 18859254943

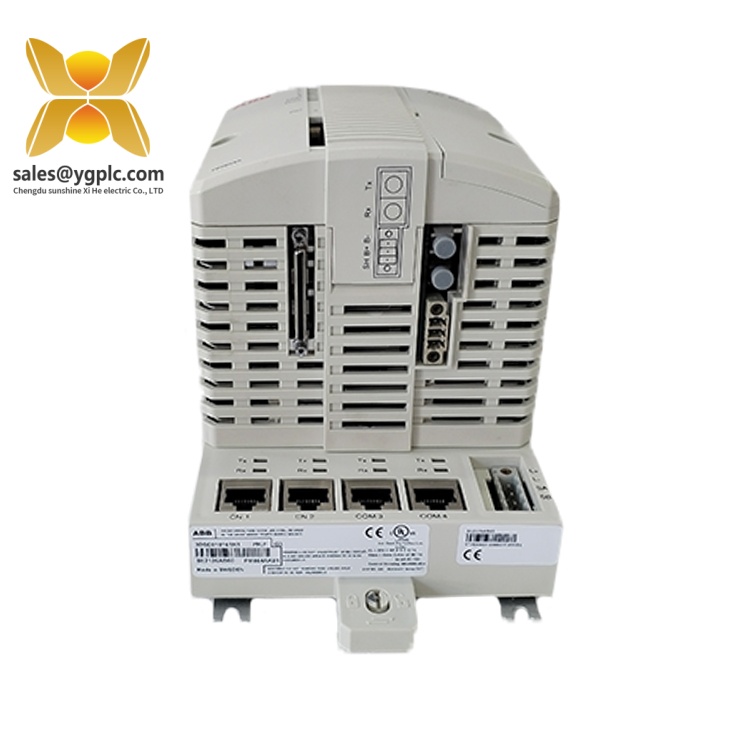

PM866

Application Areas

The ABB PM866 is deployed across industries where precision, reliability, and adaptability are critical:

Manufacturing: Optimizes assembly lines, robotic arms, and quality control systems, ensuring consistent output and minimizing waste.
Energy: Manages power generation, distribution, and renewable energy installations, balancing efficiency and grid stability.E-mail: sales@ygplc.com
Water/Wastewater: Controls pumps, valves, and treatment processes, ensuring regulatory compliance and resource conservation.
Oil & Gas: Monitors pipelines, refineries, and offshore platforms, enhancing safety and operational continuity.
Transportation: Integrates with traffic management systems and railway automation, improving logistics and passenger safety.

By addressing challenges such as scalability, real-time data processing, and harsh environmental conditions, the ABB PM866 empowers industries to achieve higher productivity and sustainability goals.

Installation and Maintenance

Installation Preparation:
Ensure the ABB PM866 is mounted on a DIN rail in a clean, well-ventilated environment. Verify the power supply meets 24 V DC ±10% requirements and secure connections using appropriate wiring. Use ABB’s Automation Builder software to configure the module and download control programs via Ethernet or USB.

Maintenance Recommendations:

Regularly inspect for dust accumulation, loose connections, or physical damage.
Update firmware periodically using ABB’s official software to ensure compatibility and performance.
Replace backup batteries every five years to preserve configuration data.
Test redundant systems and communication links to maintain high availability.

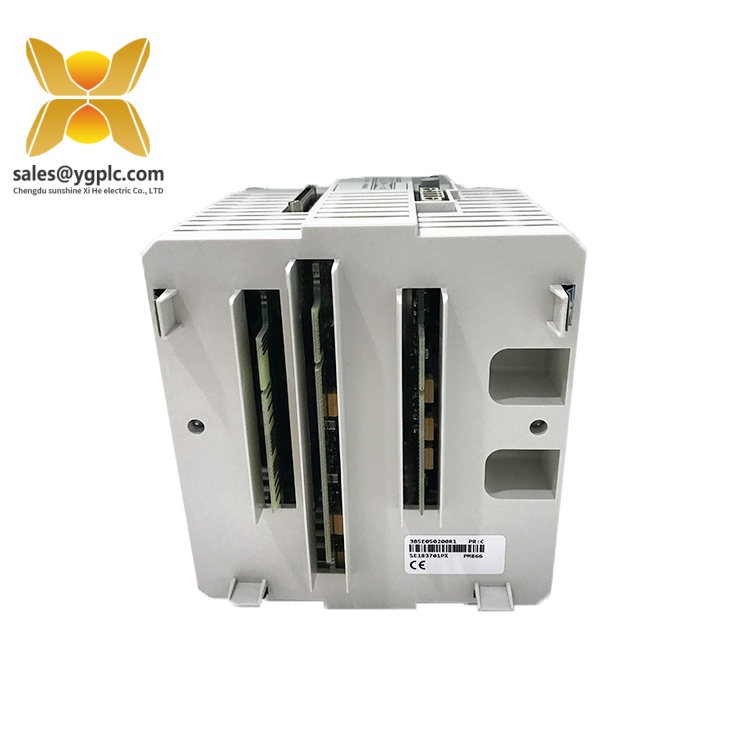

PM866

Product Guarantee

Chengdu Sunshine XiHe Electric Co., LTD, a leading industrial automation distributor since 2007, offers a 1-year warranty on the ABB PM866. This warranty covers defects in materials and workmanship, with repairs handled by certified technicians. As a trusted supplier of rare and obsolete industrial control spare parts, WhatsApp: +86 18859254943,we ensure rapid delivery and 24/7 technical support to minimize downtime. Our extensive inventory and global sourcing network enable us to meet urgent requirements efficiently, supporting industries worldwide with reliable automation solutions.
