REF610 | REF615C_C | REF615E-D | REF620E_F | Feeder Protection Relay

REF610 | REF615C_C | REF615E-D | REF620E_F | Feeder Protection Relay ABB

Original price was: $18,000.00.Current price is: $15,199.00.

Product Parameters

  • Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards, ensuring optimal performance in critical applications.
  • Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
  • Package: Secure anti-static packaging with foam padding, including mounting brackets, user manual, and calibration certificate.
  • Mounting Type: DIN rail or panel-mountable via screw holes, compatible with standard industrial enclosures for flexible installation.
  • Dimensions: Compact design (100 mm × 65 mm × 25 mm) for space-efficient integration in retrofitted or new systems.
  • Surge Protection: Built-in transient voltage suppression up to 2.5 kV (IEC 61000-4-5) safeguards against electrical surges and grid instability.
Get a Quote
Category: Tags: Brand:

Description

Brand:ABB

Model:REF610

Product Parameters

  • Condition: Factory-new, rigorously tested to meet ABB’s stringent quality standards, ensuring optimal performance in critical applications.
  • Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship under normal use.
  • Package: Secure anti-static packaging with foam padding, including mounting brackets, user manual, and calibration certificate.
  • Mounting Type: DIN rail or panel-mountable via screw holes, compatible with standard industrial enclosures for flexible installation.
  • Dimensions: Compact design (100 mm × 65 mm × 25 mm) for space-efficient integration in retrofitted or new systems.
  • Compliance:
    • IEC 61850, IEC 60870-5-103, Modbus®, and DNP 3.0 for communication protocols.
    • IEC 61131-2 (industrial control), UL 508 (safety), and DNV certification for marine/offshore use.
  • Application: Medium-voltage distribution substations, industrial automation, renewable energy systems, and marine/offshore environments.

Product Introduction

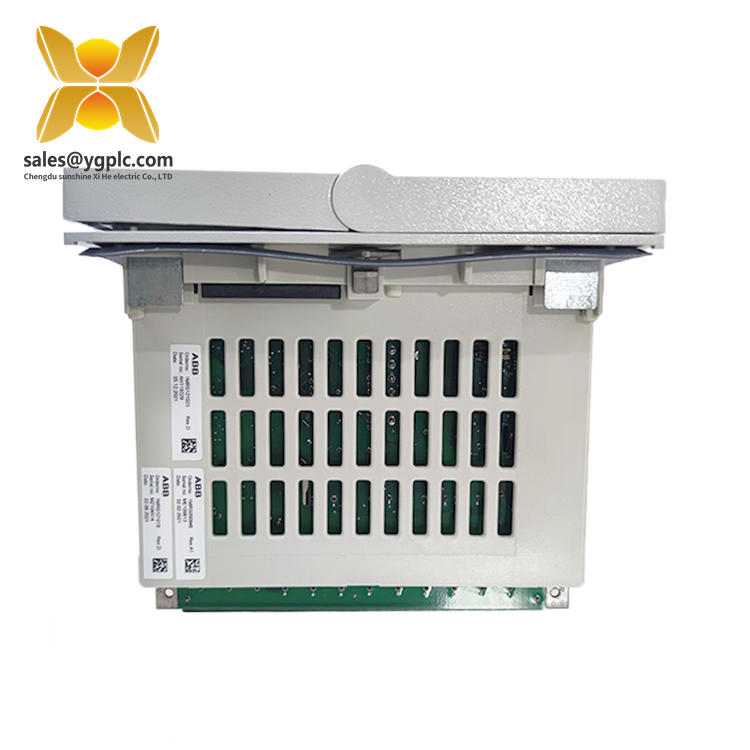

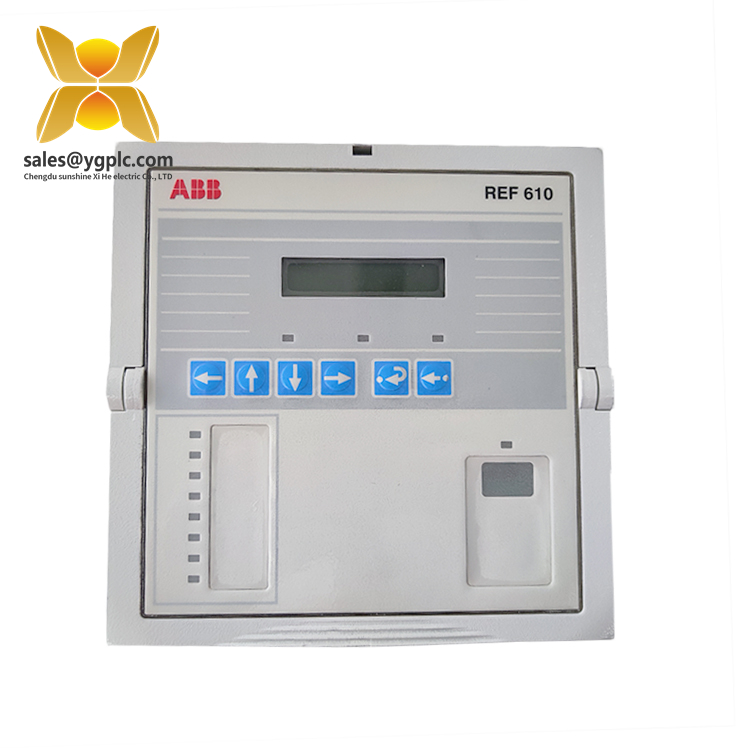

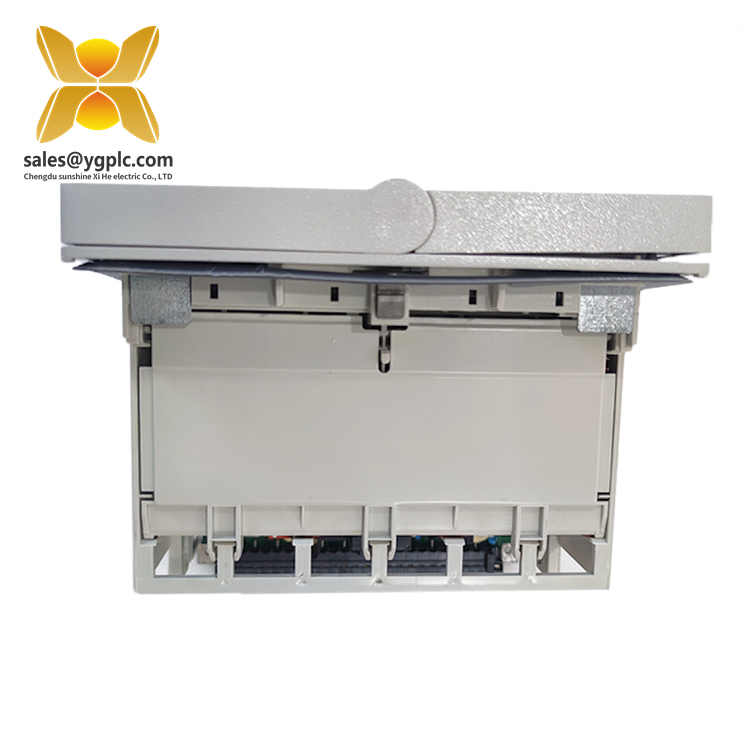

The ABB REF610 is a cutting-edge feeder protection relay designed to safeguard medium-voltage power distribution systems in utilities and industrial settings. As part of ABB’s Relion® family, the REF610 combines advanced microprocessor technology with a modular architecture to deliver comprehensive protection, measurement, and monitoring capabilities.

Key Features:
  1. Multi-layer Protection:
    • Overcurrent Protection: Three-phase non-directional overcurrent protection with adjustable time-current characteristics (instantaneous, IDMT, or definite time).
    • Earth-Fault Protection: Two-stage non-directional earth-fault protection for reliable detection of ground faults.
    • Thermal Overload Protection: Protects cables and equipment from overheating under sustained high loads.
    • Arc Protection (Optional): Rapid detection and isolation of busbar arc faults using optical sensors, enhancing safety in switchgear.
  2. Smart Functionality:
    • Auto-Reclose: Supports 1–3 phase-selective reclosure cycles for overhead line fault recovery.
    • Circuit Breaker Monitoring: Trip counter and trip circuit supervision ensure reliable breaker operation.
    • Disturbance Recorder: Logs up to 80 seconds of event data with configurable triggers for post-fault analysis.
  3. Connectivity & Control:
    • Multiple Protocols: Seamless integration with SCADA systems via IEC 61850, Modbus, or DNP 3.0.
    • Local/Remote Control: Front-panel LCD interface with password protection and remote access via serial/optical backplane modules.
  4. Durability:
    • Rugged Design: IP54-rated housing with wide temperature tolerance (-25°C to +60°C) for harsh environments.
    • Plug-and-Play: Removable plug-in design simplifies maintenance and reduces downtime.

Product Application Industry

  1. Power Distribution Substations
    • Feeder Protection: Safeguards incoming/outgoing feeders in resistance or solidly earthed systems, ensuring grid stability.
    • Busbar Protection: Optional arc protection minimizes damage from arc faults in metal-clad switchgear.
  2. Industrial Automation
    • Motor/Transformer Backup: Provides secondary protection for motors, transformers, and generators in manufacturing plants.
    • Process Control: Monitors and controls critical equipment in chemical, petrochemical, and water treatment facilities.
  3. Renewable Energy
    • Grid Integration: Manages power flow in solar/wind farms, ensuring compliance with grid codes.
    • Microgrid Stability: Protects distributed energy resources (DERs) and maintains system reliability.
  4. Marine & Offshore
    • Vessel Power Systems: Protects onboard electrical networks and offshore platforms, certified by DNV for marine use.
    • Arc Flash Safety: Rapid arc detection prevents catastrophic failures in confined marine environments.
  5. Transportation
    • Railway Electrification: Controls power distribution in traction systems, ensuring safe and efficient train operations.
    • Tunnel Ventilation: Monitors motors and fans in metro networks to maintain air quality.
Benefits for End-Users:
  • Cost Efficiency: Reduces maintenance costs through modular design and remote diagnostics.
  • Safety: Comprehensive protection features mitigate risks in high-voltage environments.
  • Scalability: Flexible configuration adapts to evolving system requirements.

Conclusion
The ABB REF610 sets a benchmark for feeder protection in modern power systems, offering a blend of advanced technology, reliability, and ease of use. Whether in substations, industries, or marine installations, the REF610 ensures optimal performance, compliance, and safety, making it a trusted choice for critical power infrastructure.
