Product Overview
The ABB REF615C_C HCFFAEAGANB2BAN1XC is a sophisticated feeder protection and control relay, playing a pivotal role in safeguarding power distribution systems. As an integral part of ABB’s esteemed Relion 615 product series, it has been meticulously engineered to meet the diverse and exacting demands of modern utility and industrial power setups.
At its core, the REF615C_C HCFFAEAGANB2BAN1XC is designed to protect electrical equipment from a wide array of faults, such as overloads, short – circuits, and earth faults. It serves as a comprehensive solution that combines protection, control, measurement, and monitoring functions all within one compact unit. This integration not only simplifies the overall system architecture but also enhances its operational efficiency.
This relay is highly adaptable and can be effectively deployed in various network topologies, including radial, looped, and meshed networks, both with and without distributed energy resources (DERs). Its ability to interface with different types of power systems makes it an ideal choice for a broad spectrum of applications. Whether in a large – scale industrial complex or a utility substation, the REF615C_C HCFFAEAGANB2BAN1XC ensures reliable power supply by promptly detecting and responding to any abnormal conditions.Whatsapp:+86 18859254943.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | REF615C_C HCFFAEAGANB2BAN1XC |
| Manufacturer | ABB |
| Product Type | Feeder Protection and Control Relay |
| Rated Voltage | 100 – 240V AC, 48 – 250V DC |
| Rated Current | 1A or 5A (for current inputs) |
| Power Consumption | Less than 10W |
| Frequency | 50/60Hz |
| Communication Protocols | IEC 61850 (Editions 1 & 2, including HSR/PRP), Modbus, DNP3, IEC 60870 – 5 – 103 |
| Number of I/O Points | Multiple configurable digital and analog I/O |
| Protection Functions | Directional/non – directional overcurrent, earth – fault (including multi – frequency admittance – based), overvoltage/undervoltage, thermal overload, arc protection (optional) |
| Measurement Accuracy | High – precision measurement of voltage, current, power, and energy parameters |
| Physical Dimensions | Compact design for easy installation, with dimensions optimized for standard enclosures |
| Operating Temperature Range | – 25°C to + 70°C |
| Mounting Method | Panel – mountable |

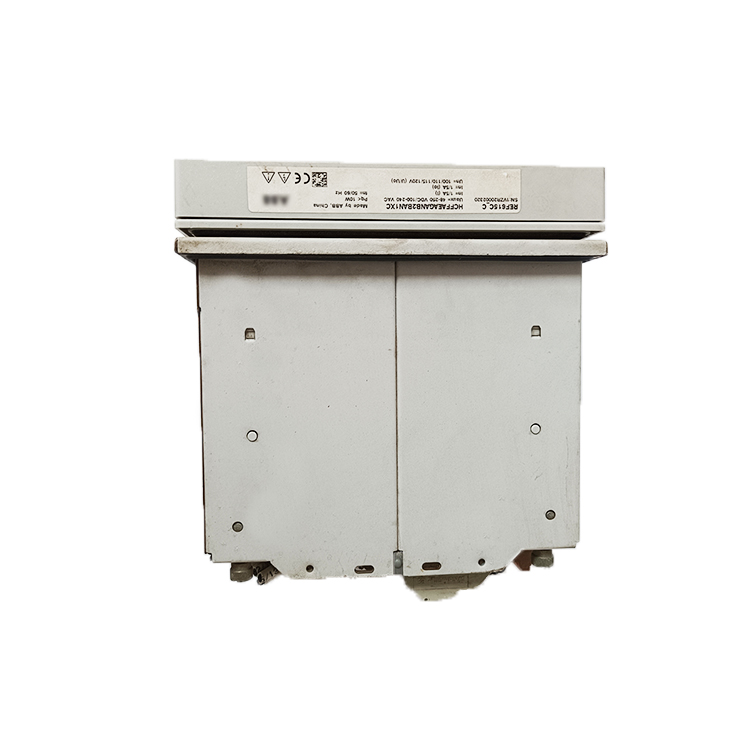

REF615C_C HCFFAEAGANB2BAN1XC
Main Features and Advantages
Comprehensive Protection Capabilities
The REF615C_C HCFFAEAGANB2BAN1XC offers an extensive range of protection functions. It can detect and respond to both directional and non – directional overcurrent situations. In the case of earth – faults, it employs advanced techniques such as multi – frequency admittance – based detection, which significantly enhances its sensitivity in identifying ground faults, even in complex electrical networks. This is crucial for protecting equipment and ensuring the safety of personnel in the event of a fault. Whatsapp:+86 18859254943.Additionally, it provides overvoltage and undervoltage protection, safeguarding connected devices from voltage fluctuations that could otherwise cause damage. Thermal overload protection is also integrated, preventing motors and other equipment from overheating due to excessive current draw over an extended period.
Advanced Communication Features
With native support for IEC 61850 communication standard (both Editions 1 & 2, including High – Availability Seamless Redundancy – HSR and Parallel Redundancy Protocol – PRP), the relay can seamlessly integrate into modern smart grid environments. This enables efficient and reliable data exchange with other intelligent devices within the substation. It also supports other common communication protocols like Modbus, DNP3, and IEC 60870 – 5 – 103, providing flexibility in system integration. The ability to communicate effectively allows for remote monitoring and control, enabling operators to manage the power system from a central location, enhancing overall system management and reducing response times to faults.
User – Friendly Interface
Featuring a large graphical LCD with a single – line diagram display, the REF615C_C HCFFAEAGANB2BAN1XC provides clear and intuitive information about the power system’s status. This interface can be accessed locally or through an easy – to – connect and navigate Human – Machine Interface (HMI). The simplicity of the interface makes it accessible to both experienced engineers and less – technically – inclined operators. Configuration and monitoring tasks can be carried out with ease, reducing the learning curve and minimizing the potential for errors during operation and maintenance.
High – Precision Measurement
The relay is equipped to perform high – precision measurements of various electrical parameters, including voltage, current, power, and energy. This accurate measurement capability is essential for power quality monitoring and for ensuring that the power system is operating within optimal parameters. Precise measurements enable operators to detect early signs of system degradation or inefficiencies, allowing for proactive maintenance and optimization of the power distribution system.Whatsapp:+86 18859254943.

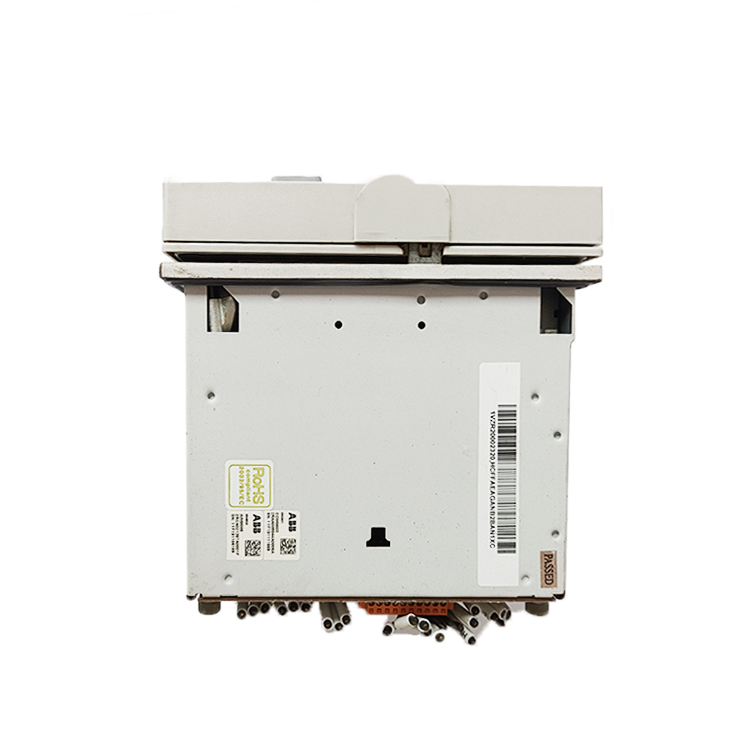

REF615C_C HCFFAEAGANB2BAN1XC
Flexibility in Configuration
The REF615C_C HCFFAEAGANB2BAN1XC comes with multiple standard configurations (12 in total) that can be easily adapted to different common feeder protection and control applications. This means that it can be quickly deployed in a variety of scenarios with minimal customization required. However, it also offers the flexibility to be configured according to specific application – specific needs. This balance between standardization and customization makes it suitable for a wide range of power system requirements, from simple radial networks to complex meshed grids.
Optional Arc Protection
As an added safety feature, the relay can be equipped with an optional arc protection function. This is particularly useful in environments where arc – related faults can pose a significant risk, such as in metal – clad switchgear. The arc protection sensors, which are provided by an optional communication module, can detect arc faults in areas like the cable room, busbar chamber, and circuit breaker chamber of switchgear. When an arc fault is detected, the relay can act rapidly to isolate the fault, minimizing damage to the equipment and protecting personnel from potential harm.
Application Areas
Power Utilities
In power utility applications, the ABB REF615C_C HCFFAEAGANB2BAN1XC is extensively used in substation feeder protection. It safeguards overhead lines and cables, ensuring the reliable transmission and distribution of electrical energy. By quickly detecting and clearing faults, it helps maintain grid stability and minimizes power outages. In addition, it can be used in the integration of distributed energy resources, such as solar and wind farms, into the grid. The relay’s ability to handle complex power flow scenarios and its support for modern communication protocols make it an essential component in smart grid initiatives, enabling better control and monitoring of the power network.E-mail :sales@ygplc.com.
Industrial Facilities
Industrial plants, such as those in the manufacturing, mining, and chemical sectors, rely on a stable and reliable power supply. The REF615C_C HCFFAEAGANB2BAN1XC is used to protect and control the power distribution systems within these facilities. It can safeguard critical equipment, such as motors, transformers, and drives, from electrical faults, preventing costly downtime and equipment damage. In industrial settings with a high density of electrical equipment, the relay’s comprehensive protection functions and accurate measurement capabilities are crucial for maintaining the smooth operation of the production process.

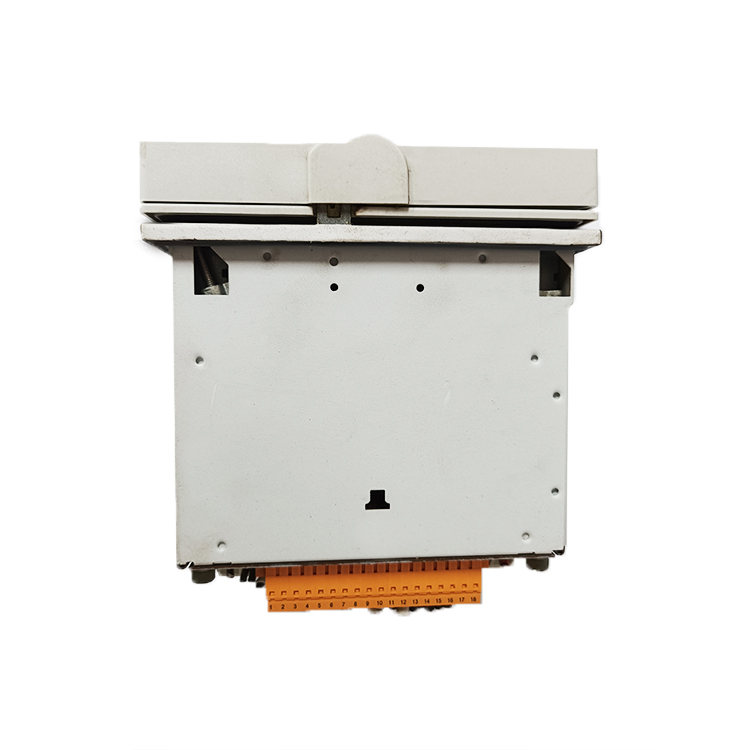

REF615C_C HCFFAEAGANB2BAN1XC
Commercial Buildings
In commercial buildings like offices, shopping malls, and hospitals, a continuous and stable power supply is of utmost importance. The REF615C_C HCFFAEAGANB2BAN1XC can be installed in the building’s electrical distribution system to protect against faults and ensure power quality. It can monitor and control the power flow to different areas of the building, optimizing energy usage and reducing the risk of power – related disruptions. For example, in a hospital, where life – support systems and other critical medical equipment rely on a stable power supply, the relay’s reliable protection and control functions are essential for patient safety.
Transportation Infrastructure
In transportation – related power systems, such as those in electric vehicle charging stations and rail transit systems, the REF615C_C HCFFAEAGANB2BAN1XC also finds application. In electric vehicle charging stations, it can protect the charging equipment from electrical faults and ensure the safe and efficient charging of vehicles. In rail transit, it is used to protect the power supply systems for trains, ensuring smooth operation and minimizing the risk of service disruptions due to electrical problems.Whatsapp:+86 18859254943.
Related Products
- REF615E_E HBFHAEAGNCA1BNN1XE: Another high – performance feeder protection and control relay from ABB. It has similar core functions as the REF615C_C HCFFAEAGANB2BAN1XC, but may offer additional features tailored for specific applications, such as enhanced support for distributed energy resources integration.
- REF610: A member of the Relion product family. It is also a protection and control device, but it may be more focused on simpler applications or smaller – scale power systems compared to the REF615C_C HCFFAEAGANB2BAN1XC, with a potentially more basic set of features and lower cost.
- RD CO – 01: This is an accessory that can be used in conjunction with the REF615C_C HCFFAEAGANB2BAN1XC. It may be related to communication or control functions, helping to expand the relay’s capabilities within a larger system.
- REF620: A more advanced protection and control product in the ABB lineup. It offers enhanced functionality, such as more complex protection algorithms and higher – speed communication capabilities, and can be used in more demanding applications where the REF615C_C HCFFAEAGANB2BAN1XC may not fully meet the requirements.
- SPA – ZC 302 Protocol Adapter: This adapter can be used with the REF615C_C HCFFAEAGANB2BAN1XC to enable support for the Profibus DPV1 protocol, expanding the relay’s communication options in systems that require this specific protocol for integration with other devices.
REF615C_C HCFFAEAGANB2BAN1XC
Installation and Maintenance
Installation Preparation
Before installing the ABB REF615C_C HCFFAEAGANB2BAN1XC, it is essential to ensure that the installation environment meets the specified requirements. The area should be clean, dry, and free from excessive dust, moisture, and corrosive substances. Since it is an electrical device, proper electrical grounding must be established to ensure safe operation.
Verify the compatibility of the relay with the existing power system.E-mail :sales@ygplc.com. Check the voltage, current, and frequency ratings to ensure they match the requirements of the REF615C_C HCFFAEAGANB2BAN1XC. Carefully review the wiring diagrams provided by ABB and ensure that all electrical connections are made correctly. Use appropriate tools and follow safety procedures when handling the relay to avoid any damage.
Maintenance Recommendations
Regular maintenance is crucial for the optimal performance and longevity of the REF615C_C HCFFAEAGANB2BAN1XC. Periodically inspect the relay for any signs of physical damage, such as cracks, burns, or loose connections. Check the electrical connections to ensure they are tight and free from corrosion.
Monitor the operating temperature of the relay. E-mail :sales@ygplc.com.Since it is designed to operate within a specific temperature range (- 25°C to + 70°C), any deviation from this range could indicate a problem, such as a cooling system malfunction or excessive load. Use diagnostic tools provided by ABB to perform regular checks on the relay’s functionality, including its protection and measurement capabilities.
Keep the relay’s software up – to – date. ABB may release software updates to improve performance, add new features, or address security vulnerabilities. Follow the manufacturer’s instructions for installing these updates. Maintain a record of all maintenance activities, including inspections, tests, and software updates, for future reference and to track the relay’s performance over time.
REF615C_C HCFFAEAGANB2BAN1XCREF615C_C HCFFAEAGANB2BAN1XC
Product Assurance
ABB stands firmly behind the quality of the REF615C_C HCFFAEAGANB2BAN1XC with a comprehensive product assurance program. The relay is backed by a standard warranty, typically covering a specific period against defects in materials and workmanship. During this warranty period, if any issues arise due to manufacturing flaws, ABB will repair or replace the product at no cost to the customer.
In addition to the warranty, ABB offers an extensive range of after – sales services.Whatsapp:+86 18859254943. Their global network of authorized service centers provides round – the – clock technical support. Whether it’s assistance with installation, troubleshooting, or maintenance, customers can rely on ABB’s experienced and skilled technicians. ABB also provides regular software updates for the relay (when applicable) to enhance its performance, add new features, and address any potential security vulnerabilities.
The company’s commitment to quality is evident in its strict manufacturing processes and rigorous quality control procedures. Each REF615C_C HCFFAEAGANB2BAN1XC undergoes thorough testing before leaving the factory to ensure it meets the highest industry standards. This focus on quality and customer satisfaction gives customers the confidence to rely on the REF615C_C HCFFAEAGANB2BAN1XC for their critical power system protection and control needs. If customers have any questions or concerns regarding the product, ABB’s customer support team is readily available to provide prompt and helpful assistance.
