Product Overview

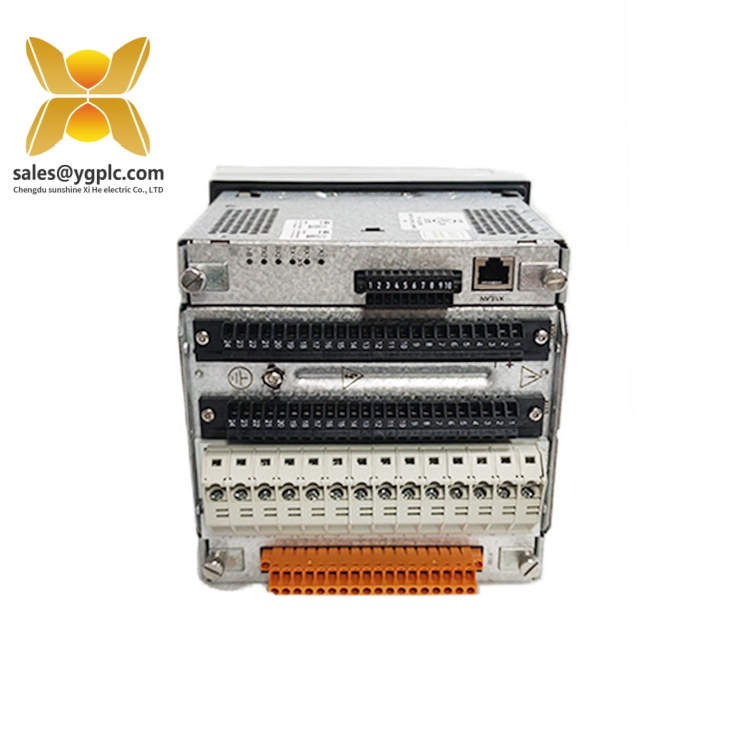

The ABB REF615E_E HBFHAEAGNCA1BNN1XE is a high-performance Feeder Protection and Control Relay designed for utility substations and industrial power distribution systems. As part of ABB’s Relion® 615 series, this advanced device integrates protection, control, measurement, and monitoring functions into a compact, withdrawable unit, making it ideal for radial, looped, or meshed networks with or without distributed energy resources (DERs). Its core purpose is to ensure reliable operation by detecting faults (e.g., overcurrent, earth faults) and executing precise control actions while supporting modern communication standards like IEC 61850 for seamless interoperability in digital substations.
The ABB REF615E_E HBFHAEAGNCA1BNN1XE is a high-performance Feeder Protection and Control Relay designed for utility substations and industrial power distribution systems. As part of ABB’s Relion® 615 series, this advanced device integrates protection, control, measurement, and monitoring functions into a compact, withdrawable unit, making it ideal for radial, looped, or meshed networks with or without distributed energy resources (DERs). Its core purpose is to ensure reliable operation by detecting faults (e.g., overcurrent, earth faults) and executing precise control actions while supporting modern communication standards like IEC 61850 for seamless interoperability in digital substations.
Key features include directional/non-directional overcurrent protection, multi-frequency admittance-based earth-fault detection, and arc protection with high-speed outputs. The REF615E_E also excels in power quality monitoring, offering real-time measurements of voltage, current, and power parameters with high precision. Its graphical HMI and web-based interface simplify configuration and diagnostics, while IEEE 1588 V2 support enables substation-wide time synchronization.
Designed for harsh environments, the REF615E_E operates across 85–132V AC/DC and withstands temperatures from -25°C to +70°C, ensuring resilience in industrial settings. With a withdrawable plug-in design, it facilitates quick installation and maintenance, reducing downtime for critical systems.
REF615E_E-HBFHAEAGNCA1BNN1XE
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | REF615E_E HBFHAEAGNCA1BNN1XE |
| Manufacturer | ABB |
| Product Type | Feeder Protection and Control Relay |
| Rated Voltage | 85–132V AC/DC, 47–63 Hz |
| Rated Current | 0.5A AC |
| Communication Protocols | IEC 61850 (Editions 1 & 2, HSR/PRP), Modbus, DNP3, IEC 60870-5-103 |
| I/O Points | 6 configurable inputs/outputs |
| Response Time | <10 ms for protection actions |
| Accuracy | ±0.2% for measurement parameters |
| Physical Dimensions | 180 mm × 192 mm × 176 mm (W × H × D) |
| Weight | 3.3 kg (net) |
| Operating Temperature | -25°C to +70°C |
| Installation Method | Panel-mountable, withdrawable unit |
Main Features and Advantages
The REF615E_E stands out for its versatility and scalability:
The REF615E_E stands out for its versatility and scalability:
- Comprehensive Protection: Combines overcurrent, earth-fault, overvoltage/undervoltage, and thermal overload protection with multi-frequency admittance-based earth-fault detection for high sensitivity in ungrounded or resistive grounded systems.
- Advanced Communication: Native support for IEC 61850 ensures interoperability in smart grids, while GOOSE messaging and IEEE 1588 V2 enable fast, synchronized data exchange.
- User-Friendly Interface: A large graphical LCD and web-based HMI allow intuitive configuration and monitoring. The PCM600 tool simplifies parameter adjustments and signal matrix customization.
- Reliability: With IP54 protection and a modular design, the relay resists dust and moisture while enabling easy component replacement.
- Flexibility: Supports customizable standard configurations for applications like capacitor bank protection, motor protection, and DER interconnection.
REF615E_E-HBFHAEAGNCA1BNN1XE
Application Areas
The REF615E_E is deployed across diverse industries:
The REF615E_E is deployed across diverse industries:
- Power Utilities: Protects overhead lines, cables, and feeders in substations, ensuring grid stability and enabling seamless integration of renewable energy sources.
- Industrial Systems: Ideal for metallurgy, chemical plants, and mining operations, where it safeguards critical equipment like motors, transformers, and drives from faults.
- Commercial Facilities: Used in airports, ports, and data centers to monitor and protect power distribution networks, minimizing downtime.
- Smart Grids: Enables remote control and condition monitoring through IEC 61850, supporting grid modernization and energy management.
Related Products
- REF615E_1G: Similar to REF615E_E but optimized for distributed generation applications, with enhanced interconnection protection.
- REF615E_D: Features software version 3.0, offering advanced fault location algorithms and expanded communication options.
- REF615 IEC: Base model with core protection functions, suitable for simpler radial networks.
- Relion® 620 Series: Higher-end relays for complex substation automation, complementing REF615E_E in larger systems.
- SPA-ZC 302 Protocol Adapter: Extends communication capabilities to PROFIBUS DPV1 networks.
- PCM600 Configuration Tool: Essential software for programming and commissioning REF615E_E.
- ABB Arc Protection System: Optional add-on for REF615E_E, enhancing safety in high-risk environments.
- Relion® 670 Series: Line differential protection relays for long-distance transmission lines.
- ABB HMI Panels: Compatible visualization devices for real-time monitoring.
- ABB Circuit Breakers: It is used together to ensure that the circuit is cut off quickly when the fault occurs.
REF615E_E-HBFHAEAGNCA1BNN1XE
Installation and Maintenance
Installation Preparation:
Installation Preparation:
- Ensure the REF615E_E is mounted in a dust-free, dry environment with proper ventilation. Verify IP54-rated enclosures for outdoor use.
- Follow IEC 61850 cabling standards for Ethernet connections and shielded wiring for analog inputs to minimize interference.
- Use PCM600 to upload configuration files and test relay functionality before energizing the system.
Maintenance Recommendations:
- Routine Checks: Inspect connections quarterly for loose terminals and clean the unit’s vents to prevent overheating.
- Firmware Updates: Regularly update software via ABB Ability™ System 800xA to access new features and security patches.
- Functional Testing: Perform annual tests using Relion® Test Kit to validate protection logic and measurement accuracy.
- Spare Parts: Stock withdrawable modules (e.g., power supply, I/O cards) to reduce repair time.
REF615E_E-HBFHAEAGNCA1BNN1XE
Product Assurance
ABB guarantees the REF615E_E HBFHAEAGNCA1BNN1XE with a 12-month warranty covering defects in materials and workmanship. This includes:
ABB guarantees the REF615E_E HBFHAEAGNCA1BNN1XE with a 12-month warranty covering defects in materials and workmanship. This includes:
- Free Repairs/Replacements: For faulty components during the warranty period.
- Global Support: Access to ABB’s 24/7 technical service and authorized service centers worldwide.
- Lifecycle Services: Options for upgrades (e.g., software, hardware) and retrofits to extend the product’s operational lifespan.
- Environmental Compliance: The relay meets RoHS and WEEE directives, ensuring eco-friendly disposal.
With its proven reliability, cutting-edge technology, and ABB’s industry-leading support, the REF615E_E delivers unmatched value for critical power systems. For urgent inquiries or bulk orders, contact our team to leverage our extensive stock and global logistics network.
