Product Overview

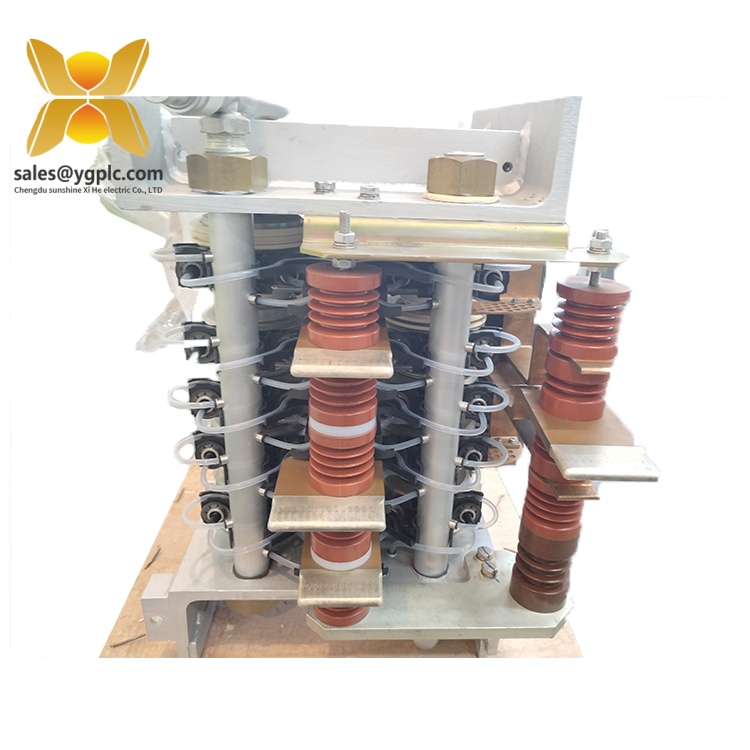

The ABB S-073N 3BHB009884R0021 is a high – voltage inverter phase module, a crucial component in power conversion systems. As part of ABB’s comprehensive portfolio for high – voltage applications, this module is engineered to meet the stringent demands of modern industrial and power – related processes.
At its core, the S – 073N 3BHB009884R0021 is designed to convert direct current (DC) into alternating current (AC) with high efficiency and precision. It plays a pivotal role in power electronic equipment, especially in high – voltage power systems. The module is constructed using advanced semiconductor switching devices, such as transistors and thyristors, which are carefully selected and integrated to ensure optimal performance.
This high – voltage inverter phase module is well – suited for applications that require stable and efficient power conversion. It can be found in various industries where high – voltage power is utilized, including power generation, transmission, and distribution, as well as in large – scale industrial manufacturing processes. In power systems, it helps in achieving long – distance transmission and distribution of electrical energy by providing the necessary AC power output.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | S – 073N 3BHB009884R0021 |
| Manufacturer | ABB |
| Product Type | High – Voltage Inverter Phase Module |
| Working Temperature Range | – 20 °C to + 70 °C |
| Input Current | 15 mA |
| Output Current | 3 A |
| Protection Level | IP20 |
| Voltage Rating | Suitable for high – voltage applications, capable of withstanding several thousand volts |
| Power Density | High, enabling a compact structure design with a small footprint |
| Control Precision | Can accurately control voltage and current in AC circuits for high – precision applications |
| Function Set | Includes switching, current limiting, overvoltage protection, and other functions for enhanced system reliability |
| Programmability | Some versions may support software configuration for parameter adjustment according to specific needs |
S-073N-3BHB009884R0021
Main Features and Advantages
High – Voltage Design
The S – 073N 3BHB009884R0021 is specifically designed to handle high – voltage circuits. Its ability to withstand voltages of up to several thousand volts makes it suitable for use in high – voltage power systems where reliable operation under extreme electrical conditions is essential. This high – voltage tolerance ensures that the module can effectively convert DC power to AC power in high – voltage applications without compromising on performance or safety.E-mail :sales@ygplc.com.
Precision Control
This module offers precise control over the voltage and current in the AC circuit. It is engineered to meet the requirements of various high – precision power electronic applications. Whether it is maintaining a stable voltage output for sensitive equipment or accurately controlling the current to optimize power consumption, the S – 073N 3BHB009884R0021 can perform these tasks with a high degree of accuracy. This precision control feature is crucial for industries that rely on stable and accurate power supply, such as semiconductor manufacturing, where even minor fluctuations in power can lead to product defects.
Versatility
The S – 073N 3BHB009884R0021 comes with a wide range of functions, making it a versatile component in power conversion systems. In addition to its basic function of DC – to – AC conversion, it also includes features like switching, current limiting, and overvoltage protection. The switching function allows for efficient control of power flow, while the current – limiting feature protects the module and connected equipment from overcurrent situations. The overvoltage protection function ensures that the module can operate safely even in the presence of voltage spikes, enhancing the overall reliability of the system.
High – Temperature Operation
The module is designed to maintain its performance in high – temperature environments. This makes it suitable for use in harsh industrial conditions where equipment may be exposed to elevated temperatures. Whether it is operating in a power plant with high ambient temperatures or in an industrial furnace environment, the S – 073N 3BHB009884R0021 can continue to function reliably. Its ability to withstand high temperatures without performance degradation reduces the need for additional cooling systems in some applications, leading to cost savings and increased system efficiency.
Programmability (in some versions)
Certain versions of the S – 073N 3BHB009884R0021 support software configuration. This programmability feature allows users to adjust various parameters according to their specific application requirements. For example, users can modify the switching frequency, voltage output levels, or current limits to optimize the module’s performance for a particular load. This flexibility in configuration makes the module adaptable to different operating conditions and application scenarios, providing users with a customized solution for their power conversion needs.
High Efficiency
ABB’s S – 073N 3BHB009884R0021 high – voltage inverter phase module adopts advanced semiconductor switching devices and innovative circuit design. These technological advancements enable the module to achieve highly efficient power conversion, minimizing energy loss during the DC – to – AC conversion process. High efficiency not only helps in reducing operational costs by consuming less power but also contributes to environmental sustainability by minimizing energy waste. In large – scale power systems, the cumulative effect of using efficient modules like the S – 073N 3BHB009884R0021 can lead to significant energy savings over time.
High Reliability
The S – 073N 3BHB009884R0021 has undergone strict quality control and reliability testing procedures. ABB’s reputation for quality manufacturing ensures that this module has excellent stability and durability. It can operate stably for long periods even under harsh working conditions, such as high – voltage stress, temperature variations, and electrical interference. Whatsapp:+86 18859254943.This high reliability is crucial for applications where continuous and uninterrupted power conversion is required, such as in power grid infrastructure, where any failure can lead to widespread power outages and significant economic losses.
High Power Density
Featuring a compact structure design, the S – 073N 3BHB009884R0021 has a high power density. This means that it can deliver a large amount of power in a relatively small physical size. The small footprint of the module makes it easier to integrate into existing power systems or new equipment designs where space may be limited. For example, in modern industrial control cabinets or compact power conversion units, the high power density of the S – 073N 3BHB009884R0021 allows for more efficient use of space while still providing the necessary power conversion capabilities.
Flexible Configuration
ABB offers a variety of models and specifications of inverter phase modules, including the S – 073N 3BHB009884R0021. This allows for flexible configuration according to actual application needs. Whether it is a small – scale power conversion project or a large – scale industrial installation, users can select the appropriate module or combination of modules to meet their specific power conversion requirements. The flexibility in configuration also enables easy scalability, so that as the power demands of an application grow over time, additional modules can be added to the system without major re – design efforts.
S-073N-3BHB009884R0021
Application Areas
Power Industry
In the power industry, the ABB S – 073N 3BHB009884R0021 is widely used in power system reactive power compensation, active filtering, and harmonic suppression. In power generation plants, it helps in optimizing the power factor by compensating for reactive power, which improves the overall efficiency of the power generation process. By reducing reactive power, less power is wasted in the form of magnetic fields, and more power can be effectively transmitted to the grid.
For active filtering, the module can detect and counteract harmonic currents in the power system. Harmonics can cause problems such as overheating of transformers, interference with communication systems, and reduced lifespan of electrical equipment. The S – 073N 3BHB009884R0021 actively filters out these harmonics, ensuring a cleaner and more stable power supply. In power transmission and distribution networks, it plays a crucial role in maintaining power quality and grid stability.Whatsapp:+86 18859254943.
Transportation
The module is essential for providing stable high – voltage power in transportation – related applications. In electric vehicle charging stations, it is used to convert the incoming high – voltage DC power from the grid or energy storage systems into the appropriate AC voltage for charging electric vehicles. The high – voltage and high – power capabilities of the S – 073N 3BHB009884R0021 enable fast and efficient charging, reducing the charging time for electric vehicles.
In rail transit systems, such as subway trains and high – speed trains, the module is used in the power supply systems. It converts the high – voltage power from the overhead lines or third – rail systems into the appropriate voltage levels required by the train’s traction motors and other electrical components. The reliable power conversion provided by the S – 073N 3BHB009884R0021 is critical for the smooth operation of rail transit, ensuring safe and efficient transportation of passengers.
S-073N-3BHB009884R0021
Industrial Manufacturing
In industrial manufacturing, the S – 073N 3BHB009884R0021 is used in a wide range of applications. For example, in large – scale manufacturing plants that use high – voltage motors for machinery operation, the module can be used to control the speed and torque of these motors. By precisely controlling the power supply to the motors, it can optimize the performance of the manufacturing processes, improve product quality, and reduce energy consumption.
In industries such as steel production, aluminum smelting, and chemical processing, where high – voltage and high – power equipment is used, the S – 073N 3BHB009884R0021 can be integrated into the power distribution and conversion systems. It helps in providing stable power to the various processing equipment, ensuring continuous and reliable operation of the industrial processes. In addition, its ability to handle high – voltage and high – current loads makes it suitable for use in industrial applications where the power demands are significant.Whatsapp:+86 18859254943.
Renewable Energy Generation
In the renewable energy sector, the S – 073N 3BHB009884R0021 is used in solar and wind energy power generation systems. In solar power plants, it is used to convert the DC power generated by solar panels into AC power that can be fed into the grid. The high – efficiency power conversion of the module helps in maximizing the amount of power that can be extracted from the solar panels and transferred to the grid.
In wind turbines, the module is used in the power conversion systems to convert the variable – frequency AC power generated by the turbine generators into a stable AC power output suitable for grid connection. The ability of the S – 073N 3BHB009884R0021 to operate under varying input conditions, such as the fluctuating wind speeds in wind energy applications, makes it an ideal choice for renewable energy power conversion. It helps in ensuring a reliable and efficient integration of renewable energy sources into the existing power grid infrastructure.
Related Products
- PM825 3BSE010796R1: This is an ABB control module. It can be used in combination with the S – 073N 3BHB009884R0021 in some industrial control systems. While the S – 073N focuses on high – voltage power conversion, the PM825 can be responsible for controlling and coordinating various processes in the system, providing additional control functionality.
- Rex521GHHPSH06G: It is another component that may be related to the S – 073N 3BHB009884R0021 in certain power or industrial applications. It could potentially be used for monitoring or safeguarding functions in a system where the S – 073N is performing power conversion, adding an extra layer of system protection.
- PP836 3BSE042237R1: This module might work in parallel with the S – 073N in power distribution setups. It could be involved in power management or signal processing tasks, complementing the high – voltage inverter phase module’s power conversion function to ensure a smooth – running power system.
- NBRA – 669C: It may be used for communication or interface – related functions in a system incorporating the S – 073N 3BHB009884R0021. It can help in transmitting data related to the power conversion process or receiving control commands for the S – 073N, enhancing the overall system’s connectivity and control capabilities.
- NBRA – 659C 59006436: Similar to the NBRA – 669C, this product could play a role in the communication or control infrastructure of a system with the S – 073N. It might be designed to work in a specific network configuration or protocol, enabling seamless integration and operation with the high – voltage inverter phase module.
Installation and Maintenance
Installation Preparation
Before installing the ABB S – 073N 3BHB009884R0021, it is crucial to ensure that the installation environment meets the specified requirements. The area should be clean, dry, and free from excessive dust, moisture, and corrosive substances. Since the module is designed for high – voltage applications, proper electrical insulation of the installation area is of utmost importance. All electrical connections should be carefully planned and prepared according to the electrical wiring diagrams provided by ABB.
It is also essential to check the compatibility of the S – 073N 3BHB009884R0021 with the other components in the system. Verify that the voltage, current, and power ratings of the module match the requirements of the overall system. Additionally, ensure that the mechanical mounting provisions are suitable for the module’s size and weight. Use appropriate tools and equipment for handling and installing the module to avoid any physical damage during the installation process.
S-073N-3BHB009884R0021
Maintenance Recommendations
Regular maintenance of the S – 073N 3BHB009884R0021 is necessary to ensure its continued reliable operation. Periodically inspect the module for any signs of physical damage, such as cracks, burns, or loose connections. Check the electrical connections for tightness and look for any signs of corrosion or oxidation. If any issues are detected, take appropriate measures to repair or replace the affected parts.
Monitor the operating temperature of the module during normal operation. Since it is designed to operate within a specific temperature range (- 20 °C to + 70 °C), any abnormal temperature rise could indicate a potential problem, such as a cooling system malfunction or excessive load. If the temperature exceeds the recommended range, investigate and rectify the cause promptly.Whatsapp:+86 18859254943.
Perform regular functional tests on the module to verify its power conversion capabilities. This can involve checking the output voltage, current, and frequency to ensure they are within the specified tolerances. ABB may provide specific test procedures or diagnostic tools for conducting these tests. E-mail :sales@ygplc.com.Keep records of the maintenance activities and test results for future reference and to track the module’s performance over time.
Product Assurance
ABB stands behind the quality of the S – 073N 3BHB009884R0021 with a comprehensive product assurance program. The module comes with a standard warranty, typically covering a specific period against defects in materials and workmanship. During this warranty period, if any issues arise due to manufacturing defects, ABB will repair or replace the module free of charge.Whatsapp:+86 18859254943.
In addition to the warranty, ABB offers a wide range of after – sales services. Their global network of authorized service centers provides technical support to customers. Whether it is assistance with installation, troubleshooting, or maintenance, customers can rely on ABB’s experienced technicians. ABB also provides regular software updates for the module (if applicable) to improve performance, add new features, and address any potential security vulnerabilities.
The company’s commitment to quality is demonstrated through its strict manufacturing processes and quality control procedures. Each S – 073N 3BHB009884R0021 module undergoes rigorous testing before leaving the factory to ensure it meets the highest industry standards. This focus on quality and customer satisfaction ensures that customers can trust the S – 073N 3BHB009884R0021 for their high – voltage power conversion needs. If you have any questions or concerns regarding the product, ABB’s customer support team is readily available to provide prompt and helpful assistance.
