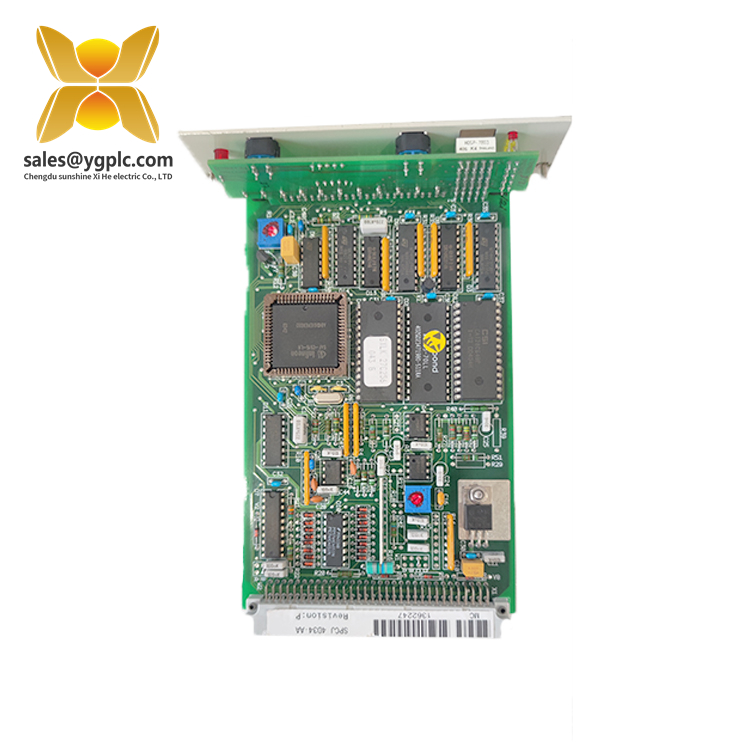

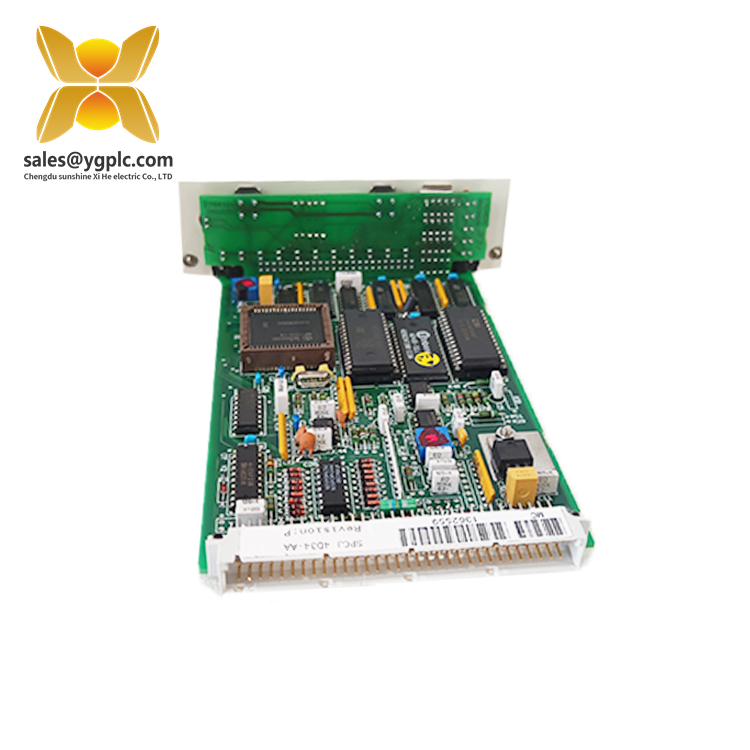

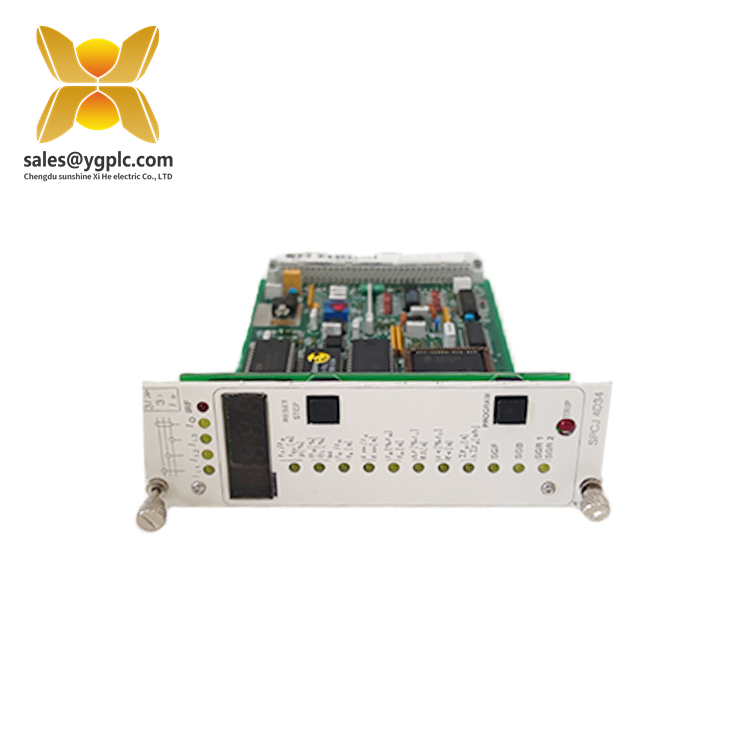

SPCJ4D34-AA | SPCIS22 | High-Reliability Motor Protection Relay

Description

Brand：ABB

Model：SPCJ4D34-AA

Product Parameters

• Condition: Factory-new, tested to meet ABB’s rigorous quality standards for industrial environments.
• Warranty: 12-month manufacturer’s warranty covering defects in materials and workmanship.
• Package: Secure anti-static packaging with mounting brackets, user manual, and certification.
• Mounting Type: DIN rail or panel-mountable for flexible integration in control systems.
• Dimensions: Compact design (35 mm × 100 mm × 80 mm) for space-efficient installation.
• Surge Protection: Built-in transient voltage suppression up to 2.5 kV (IEC 61000-4-5) safeguards against electrical surges.
• Compliance:
  • CE, RoHS, and ISO 9001 certified for safety and environmental sustainability.
  • Compliant with IEC 61850 and Modbus protocols for seamless system integration.
• Application: Power generation, petrochemical, metallurgy, water treatment, and renewable energy installations.


Product Introduction

1. Multi-Fault Protection:
   • Continuously monitors motor performance and triggers protective actions to prevent damage.
   • Supports phase imbalance detection and thermal overload protection for comprehensive safety.
2. Digital Control Architecture:
   • High-precision signal processing reduces interference, ensuring stable operation in noisy environments.
   • Configurable via ABB’s automation software for custom parameter adjustments.
3. Modular Design:
   • Easy installation and expansion via DIN rail mounting, compatible with ABB’s automation ecosystem.
   • Lightweight construction (0.45 kg) simplifies retrofitting in existing systems.
4. Wide Operating Range:
   • Operates reliably in temperatures ranging from -20°C to +60°C, suitable for harsh industrial conditions.

Product Application Industry

1. Power Generation & Distribution
   • Substations: Protects motors in pumps, fans, and generators, ensuring grid stability.
   • Renewable Energy: Manages motor-driven equipment in solar and wind farms for efficient energy conversion.
2. Petrochemical & Chemical Processing
   • Refineries: Monitors pumps and compressors in hazardous environments, ensuring compliance with safety standards.
   • Process Control: Prevents equipment failures in reactors and pipelines, minimizing operational risks.
3. Metallurgy & Heavy Industry
   • Steel Mills: Safeguards large motors in crushers and conveyor systems, reducing maintenance costs.
   • Mining: Ensures reliable operation of ventilation and extraction equipment in harsh conditions.
4. Water/Wastewater Treatment
   • Pump Stations: Protects motors in water distribution networks and sewage treatment plants.
   • Resource Optimization: Maintains consistent performance of pumps and agitators for efficient treatment processes.
5. Manufacturing & Machinery
   • Automotive: Controls motors in assembly lines and robotic systems, enhancing production efficiency.
   • Textile: Manages motors in looms and spinning machines, reducing downtime and material waste.

• Cost Efficiency: Reduces maintenance costs through remote diagnostics and modular design.
• Safety Compliance: Meets global standards for hazardous environments, ensuring operator and equipment protection.
• Scalability: Adaptable to evolving system requirements with support for advanced communication protocols.
