UAD149A0011 | UAD155A0111 | UAD215A106

Description

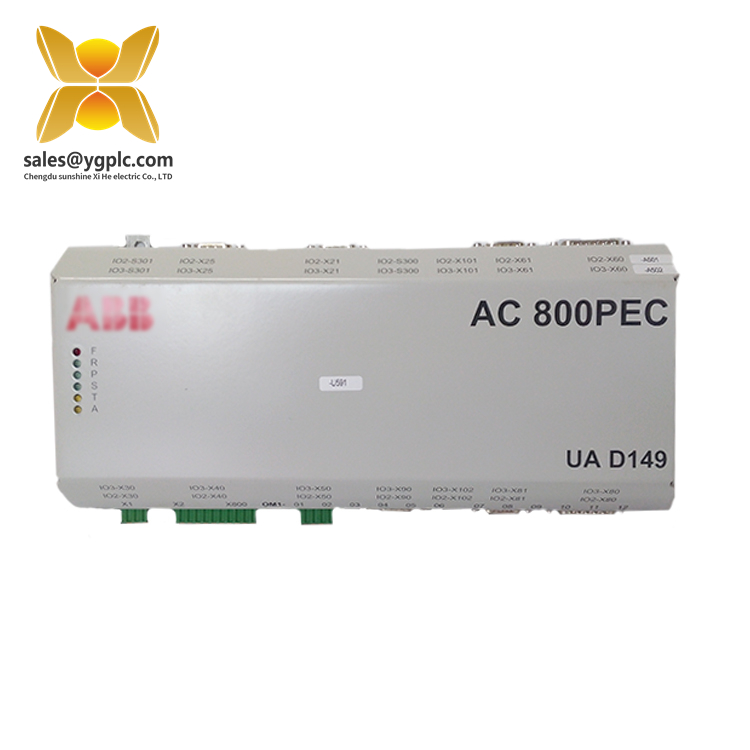

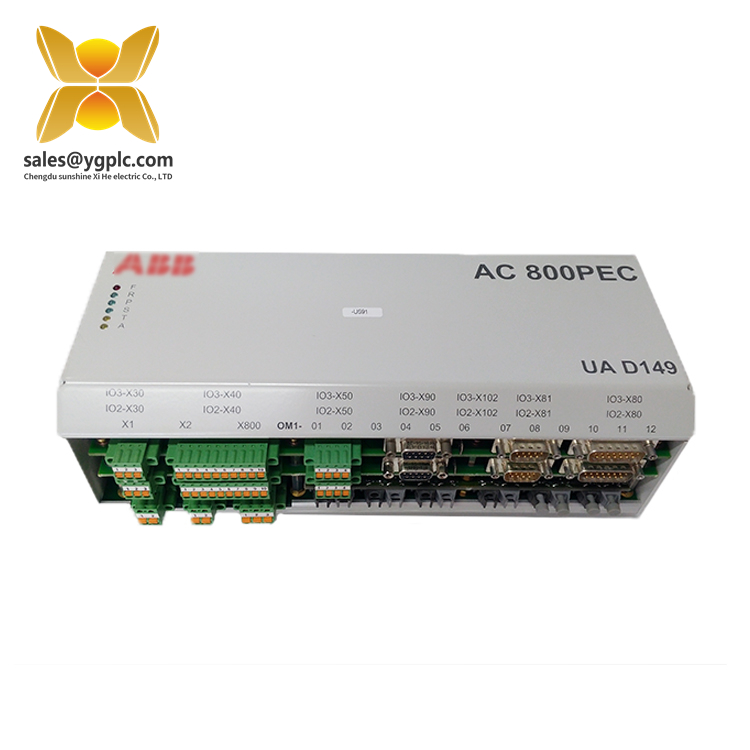

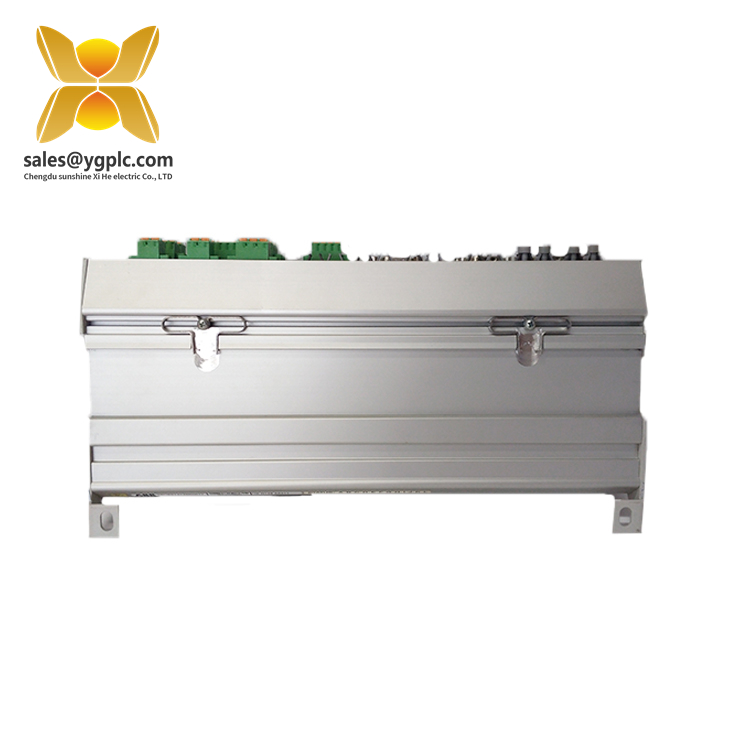

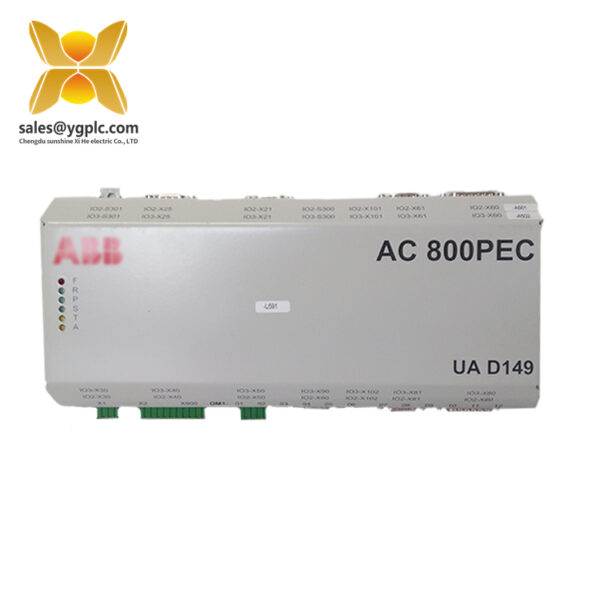

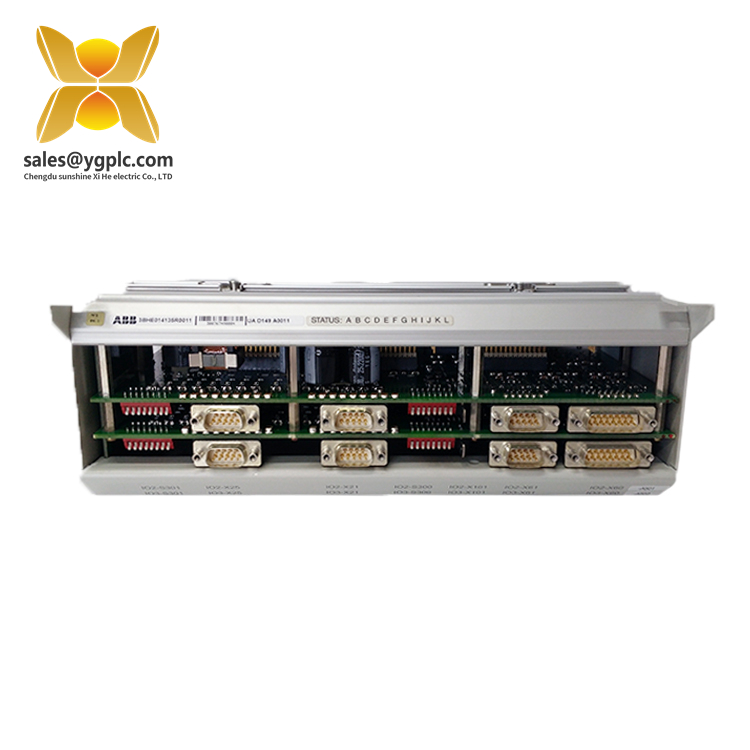

ABB UAD149A0011, ABB UAD155A0111, and ABB UAD215A106 are high-performance industrial automation modules from ABB, widely used in various control systems. These modules are designed for demanding industrial environments, ensuring reliability and efficiency. ABB UAD149A0011 specializes in data acquisition and processing, enabling precise system monitoring. ABB UAD155A0111 focuses on signal conversion and transmission, optimizing communication efficiency. ABB UAD215A106 serves as a control module, executing critical automation tasks with high precision and reliability. As part of ABB’s automation portfolio, these modules provide flexible and robust solutions for industrial applications.



Key Features and Benefits

ABB UAD149A0011 offers high-precision data acquisition with a 16-bit resolution, ensuring accurate signal processing. Its 16 analog input channels allow multiple data points to be collected simultaneously, making it ideal for complex industrial environments. The RS-485 communication interface supports long-distance data transmission, enhancing system flexibility and reliability.

ABB UAD155A0111 is designed for signal conversion, efficiently transforming 4-20mA input signals into 0-10V outputs with 0.1% accuracy. The module supports Modbus RTU protocol, enabling seamless integration with various industrial control systems and improving compatibility and expandability.

ABB UAD215A106 utilizes an ARM Cortex-M4 processor, delivering fast processing power for real-time automation tasks. With 8 digital inputs and 8 digital outputs, it provides versatile control capabilities. Its CANopen protocol ensures efficient data exchange, optimizing system-wide performance.

Applications

ABB UAD149A0011 is widely used in industrial process monitoring, environmental monitoring, and other applications requiring precise data acquisition. Its high resolution and multi-channel design make it ideal for handling complex data collection tasks.

ABB UAD155A0111 is suitable for signal conversion applications, including sensor signal conditioning and data transmission. Its high accuracy ensures signal integrity and precision in industrial automation systems.

ABB UAD215A106 is deployed in industrial automation control systems, including production line automation and equipment control. Its powerful processing capabilities and flexible I/O configurations make it an essential component for advanced control solutions.

Related Products

• UAD149A0021 – An upgraded version of ABB UAD149A0011, featuring a higher sampling rate and additional input channels.

• UAD155A0121 – An enhanced model of ABB UAD155A0111, supporting a wider range of input signals for increased compatibility.

• UAD215A107 – An advanced version of ABB UAD215A106, offering more memory and higher processing speed for improved control performance.

• UAD149B0011 – Another data acquisition module from the same series, designed for different application requirements.

• UAD155B0111 – A variant of the signal conversion module, providing alternative input and output signal types.

• UAD215B106 – A similar control module with different input/output configurations, catering to diverse control needs.

Installation and Maintenance

Pre-installation Preparation: Before installing ABB UAD149A0011, ABB UAD155A0111, and ABB UAD215A106, ensure the power supply voltage is 24V DC and verify stable power conditions. Confirm that the installation environment falls within the recommended temperature range of -20°C to 60°C to guarantee optimal module performance. Mount the modules in a well-ventilated control cabinet to minimize external interference.

Maintenance Recommendations: Regularly inspect the wiring connections of ABB UAD149A0011, ABB UAD155A0111, and ABB UAD215A106 to ensure secure fittings and prevent signal transmission instability. Conduct periodic cleaning every six months to prevent dust accumulation and maintain proper heat dissipation. If any operational issues arise, contact ABB’s technical support team for diagnostics and troubleshooting to ensure continuous and stable system performance.

Product Assurance

ABB UAD149A0011, ABB UAD155A0111, and ABB UAD215A106 undergo rigorous quality control processes, meeting international standards for reliability and durability. ABB provides a two-year warranty for these modules, ensuring free repair or replacement for any manufacturing defects within the warranty period. Additionally, ABB offers comprehensive technical support services, assisting customers in maximizing the performance and efficiency of their automation systems.
